Drilling auger drive units for mini loaders.
Trenchers - machines up to 4.5t
specs

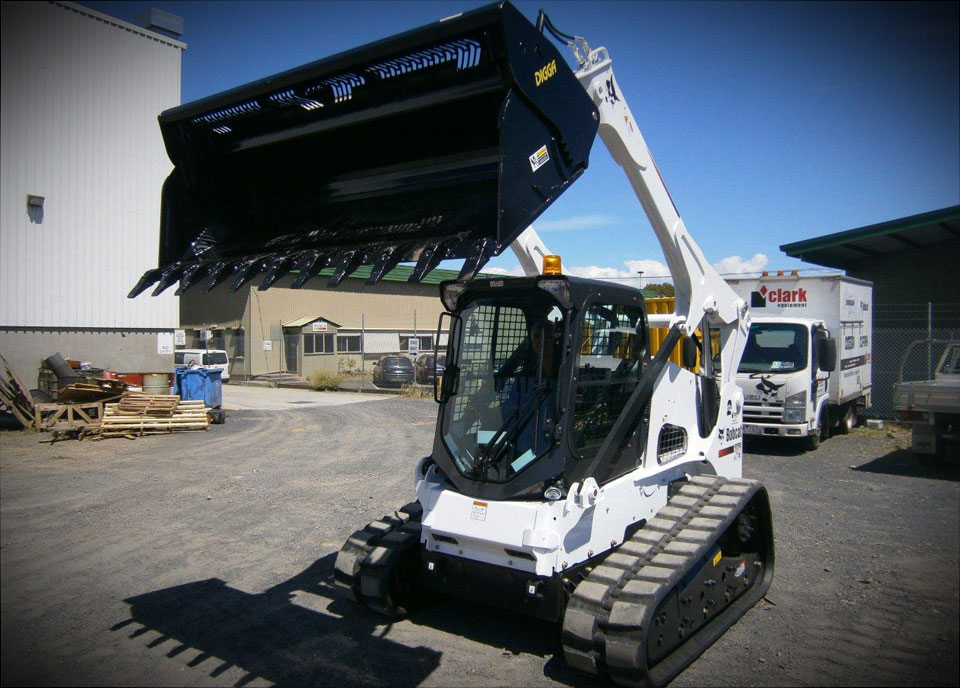

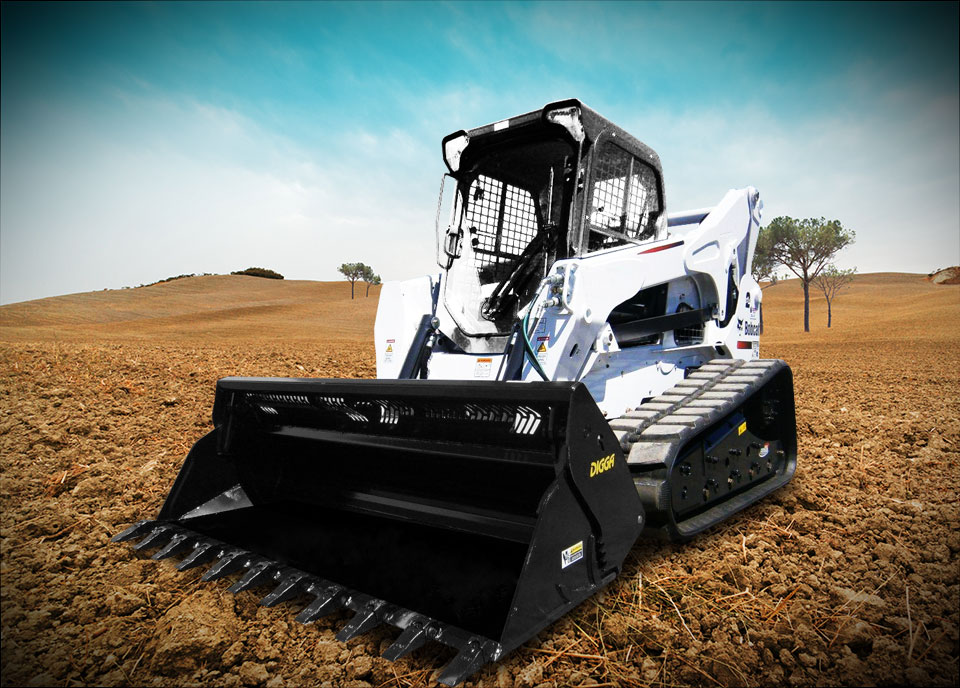

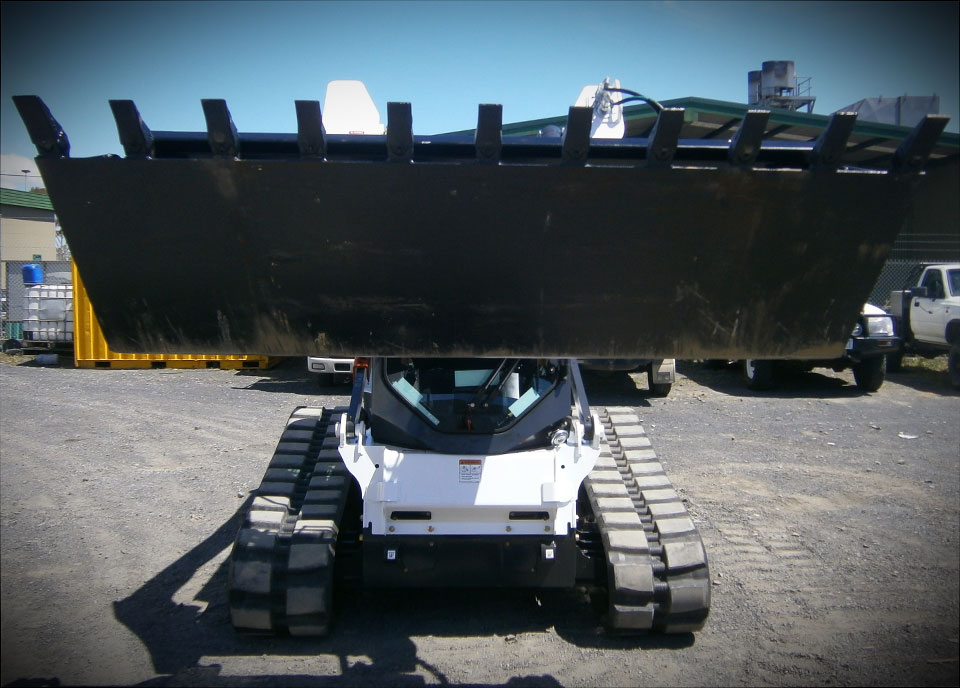

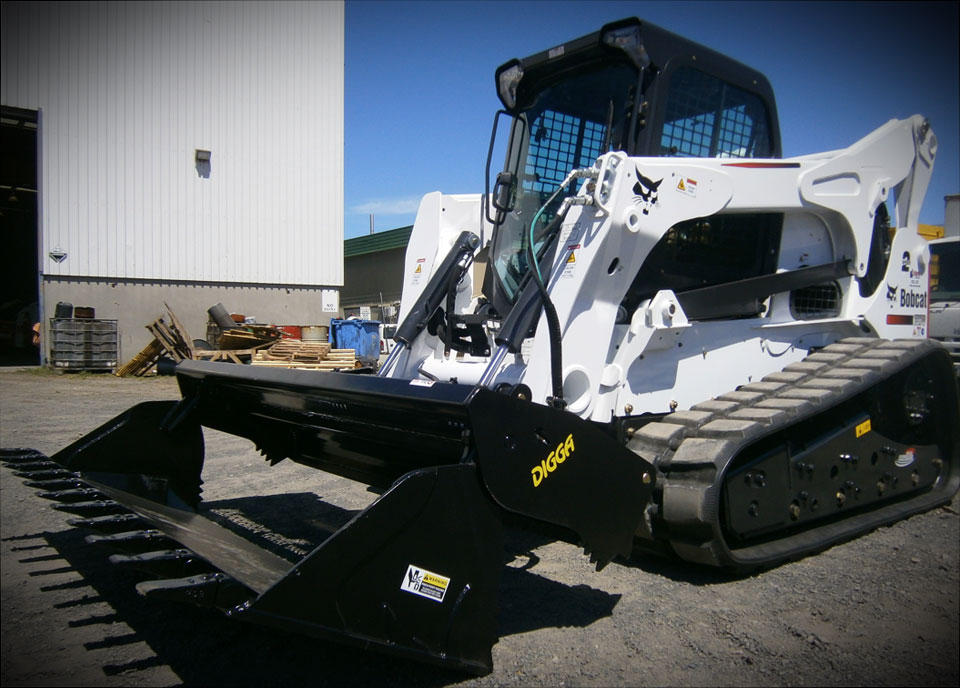

X-Series Heavy Duty 4 in 1 Bucket

Australian designed and manufactured using only the highest quality components and materials. Digga’s skid steer platform 4 in 1 bucket underwent a complete top to bottom design overhaul in 2024 which has resulted in increased strength, performance and serviceability.

Leveraging decades of bucket manufacturing experience and attentive consideration of customer feedback, the new bucket, called the X-Series is a cutting-edge design which is second to none.

The X-Series Bucket is the next evolution in bucket design

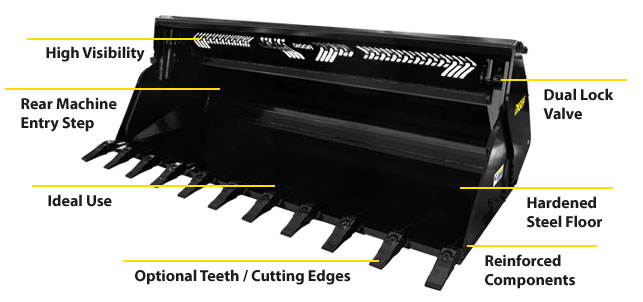

X-Series - Repositioned Cylinders - Digga Australia

Repositioned Cylinders

Repositioned cylinders minimises dirt buildup reducing the risk of damage while increasing the bucket opening width and optimising the full power of the cylinder which improves clamping force, grappling and general material handling.

X-Series - Increased Cylinder Size - Digga Australia

Increased Cylinder Size

The increased cylinder size and improved jaw design offers outstanding control across various material applications.

X-Series - Hydraulic Hose & Valve Placement - Digga Australia

Hydraulic Hose & Valve Placement

Improved hydraulic hose and valves placement at the rear of the bucket ensures prolonged durability, safeguarding against challenging environmental conditions, while conveniently accessible counter-sunk grease nipples on all pivot pins.

X-Series - Side Plate Cutouts - Digga Australia

Side Plate Cutouts

The Side plate cutouts aids ease of maintenance and double as convenient tie-down points

X-Series - Stronger Design - Digga Australia

Stronger Design

Upgraded clevis design deliver enhanced strength and durability, ensuring reliability and longevity even under the most demanding conditions.

X-Series - Clear View Guard - Digga Australia

Clear View Guard

The X-Series introduces an enhanced, stronger integrated “clear view” guard, which not only provides increased strength and great visibility of the front edge but also serves as a visual indicator of ground level enhancing operator efficiency and productivity.

X-Series - What's Included

What's Included

Lock valve, side cutters, hoses & couplers are all included with purchase of the bucket

Optional: bolt on edges (1, 2 or 3), Esco teeth.

Australian made - Digga Australia

Australian made

Our product quality and innovation leads the industry. 100% Australian made, designed and manufactured for Australian conditions, providing you with versatility, competitive pricing and a factory-backed warranty.


HEAVY DUTY
Specifications 1800 1880 2000 2040 2130 2200
Bucket Cutting Width 1800mm 1880mm 2000mm 2040mm 2130mm 2220mm
Weight 573kg 588kg 611kg 618kg 636kg 648kg
Floor Thickness 20mm 20mm 20mm 20mm 20mm 20mm
Side Plate Thickness 12mm 12mm 12mm 12mm 12mm 12mm
ISO Struck Volume m³ 0.328 0.343 0.365 0.372 0.388 0.401
ISO Heaped Volume m³ 0.468 0.489 0.520 0.531 0.554 0.573
Add-on Options
Bolt on edges (1,2 or 3), Esco Teeth
Machine Suitability
Large Skid Steer Loaders 90HP +
SUPER HEAVY DUTY + HIGH VOLUME
Specifications 2130 2200
Bucket Cutting Width 2130mm 2200mm
Weight 753kg 768kg
Floor Thickness 20mm 20mm
Side Plate Thickness 16mm 16mm
ISO Struck Volume m³ 0.443 0.458
ISO Heaped Volume m³ 0.621 0.642
High Volume Load Guard Standard Standard
Add-on Options
Bolt on edges (1,2 or 3), Esco Teeth
 Machine Suitability Large Skid Steer Loaders, ROC 1500Kg+
