2 Speed Drilling auger drives



2 Speed High Flow Auger Drives Up To 15T

Digga's 2 speed drilling auger drives for High flow machines have been designed for a wider range of applications. Offering a high speed, low torque setting for the smaller auger jobs when you need that extra RPM, and low speed, high torque for when you really need to grind out that larger diameter hole. It's like having 2 drive units in 1.

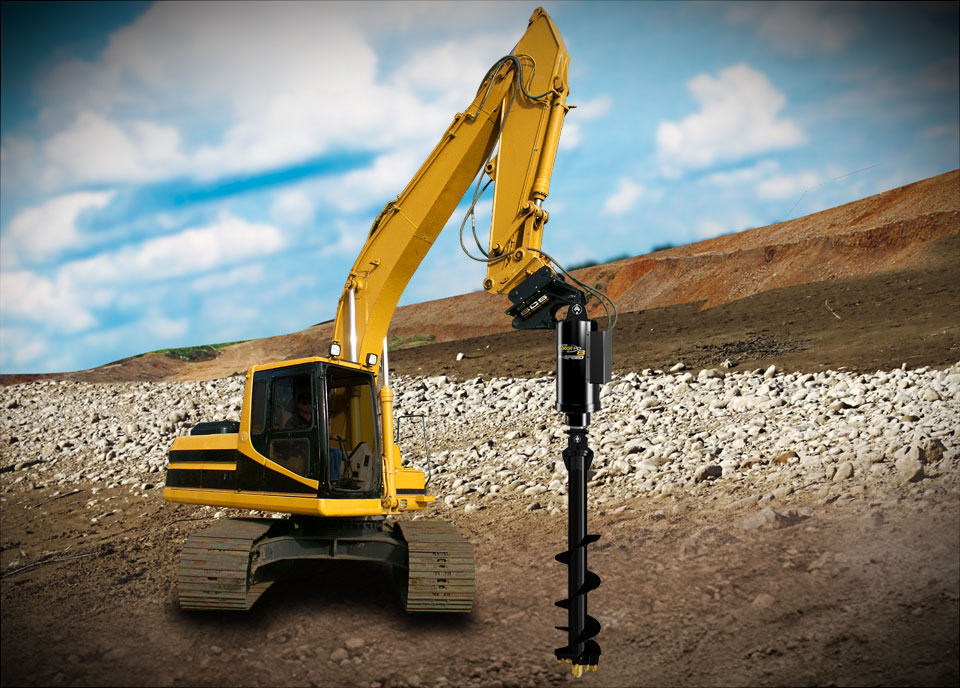

Two speed drives suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders, and backhoes with flows between 40 and 180 lpm.

  • Improved motor design & performance with 2 Speed options:
    • Low speed - High torque for large holes
    • High speed - Low torque for smaller holes
  • Suitable for a wide range of ground conditions:
    • Soft loose soils, hard soils, and rocky conditions
  • Integrated PRV (Pressure Relief Valve)
  • Simple electrical connection:
    • 12 or 24 volt coil, just requiring connection
    • Optional joystick switches, floor mounted switches & cigarette plugs available pre-wired to suit
  • Low maintenance with 5yr gear box and 3yr motor warranty

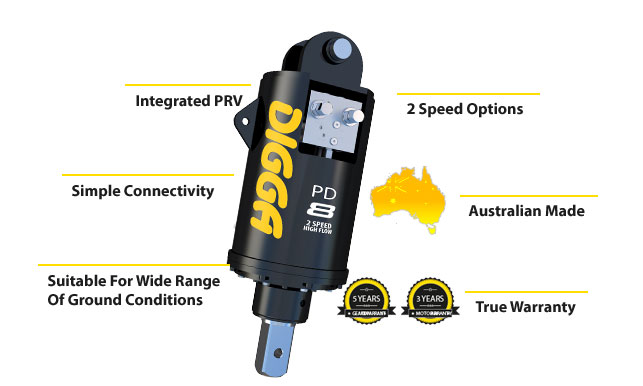

Features & Benefits

Digga drives come packed with really practical features like top mounted hose ports, cutting edge design, and a 2 piece shaft just to name a few. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.

specs see it in action

2 Speed High Flow Auger Drive Specifications

Specification pdT4hf PDt6hf PDt8hf pdt10hf PDt12
Rec Flow Range 40-120 lpm 40-150 lpm 40-150 lpm 40-150 lpm 40-180 lpm
Max Torque 4673 Nm 5758 Nm 7881 Nm 9916 Nm 11531 Nm
Motor Danfoss Danfoss Danfoss Danfoss Danfoss
Pressure Valve Fitted Included Included Included Included Included
Energy Control Valve Optional Optional Optional Optional Optional
Case Drain Required Yes Yes Yes Yes Yes
Max Pressure -   -   -   -   -   -   -   -   -   -   Do not exceed 240 bar @ 150 lpm  -   -   -   -   -   -   -   -   -   -
Max Flow -   -   -   -   -   -   -   -   -   -   Do not exceed 180 lpm @ 200 bar -   -   -   -   -   -   -   -   -   -
Max Continuous Power -   -   -   -   -   -   -   -   -   -   Do not exceed 60 Kw (80 hp)   -   -   -   -   -   -   -   -   -   -   -
Overall Length 820 mm 820 mm 952 mm 952 mm 952 mm
Diameter 340 mm 340 mm 340 mm 340 mm 340 mm
Weight (no frame / hitch) 135 kg 136 kg 161 kg 162 kg 165 kg
Std Output Shaft 75 mm Square 75 mm Square 75 mm Square 75 mm Square 75 mm Square
Swing Control N / A N / A N / A N / A N / A
Diggalign Optional Optional Optional Optional Optional
Halo Optional Optional Optional Optional Optional
Rec Auger 4 Series
6 Series		 4 Series
6 Series		 6 Series 6 Series 8 Series
Max Auger Dia Clay / Shale 750 mm 900 mm 1000 mm 1000 mm 1200 mm
Max Auger Dia Earth 1000 mm 1200 mm 1200 mm 1500 mm 1600 mm
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
