Pallet Fork Multifit - Digga Australia
specs

High powered auger drives for 28-50 tonne excavators

Our single speed high powered auger drive range has been designed to handle higher machine hydraulic pressures and deliver more power at higher RPM, to suit drilling applications for 28-50 tonne excavators. Fitted with a high efficiency radial piston motor and integrated input housing, these drives will help you increase productivity and reduce downtime to optimise your returns.

Digga’s series of high-powered compact planetary drives form a comprehensive portfolio for the foundation boring, post hole drilling, screw piling and utility markets. Digga auger drives are manufactured right here in Australia, specifically for the diverse world-wide landscape.

The HP (High Power) range of drilling drives was developed for the professional driller – the standard Geroler hydraulic motor has been upgraded to a high efficiency, high power capacity radial piston motor, that delivers outstanding performance. Delivering 30% more speed and 80% more power when compared to a std drive of the same class

Learn about auger drives

Pair your drive to suit your machine type and achieve optimum performance, find out how to avoid costly repairs, and how the auger drive has technologically developed over the years.

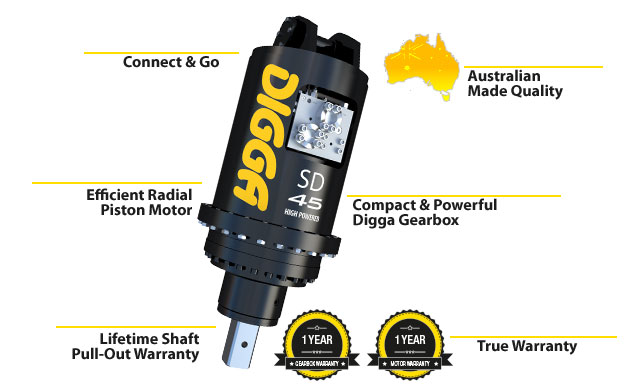

Compact & powerful

The HP (High Power) range of drilling drives was developed for the professional driller - the standard Geroler hydraulic motor has been upgraded to a high efficiency, high power capacity radial piston motor, that delivers outstanding performance. Delivering 30% more speed and 80% more power when compared to a std drive of the same class.

Industry leading performance

By utilising the radial piston motor, the auger drive will accept 90kW of power, with a max pressure of 345bar (at 174lpm), delivering exceptional power-to-speed ratio when coupled with the industry leading Digga planetary gearbox.

Advanced design

The Digga gearbox utilises a two-piece shaft design, the shaft is a separate component to the planetary carrier, isolating the planetary gears from the pushing, pulling, and bending forces generated by the host machine.

Unmatched side load ratings

More than double the side load capacity of any other gearbox on the market. Under torque load, the Digga two piece shaft design ensures there is no increased load on the bearings. The bearings do the job they were designed for, efficiently maintaining axial and side loading.

Australian made quality

Digga drive units are made right here in Australia from quality materials. Digga is a proud Australian manufacturer committed to keeping jobs in the country.

Specification SD45 HP SD55 HP
Max Torque @ 345 Bar 44, 150 Nm 57, 750 Nm
Motor Radial Piston Radial Piston
Pressure Valve Fitted INCLUDED INCLUDED
Energy Control Valve N / A N / A
Case Drain Required Yes Yes
Max Pressure Do not exceed 345 bar @ 174 lpm Do not exceed 345 bar @ 174 lpm
Max Flow Do not exceed 240 lpm @ 230 bar Do not exceed 240 lpm @ 230 bar
Max Continuous Power Do not exceed 90Kw/121hp Do not exceed 90Kw/121hp
Overall Length 1274 mm 1274 mm
Diameter 530 mm 530 mm
Weight (no linkage / hitch) 646 kg 646 kg
Std Output Shaft 100 mm Square 100 mm Square
Diggalign Optional Optional
Rec Auger 10 & 11 Series 10 & 11 Series
Max Auger Dia Clay / Shale 1800 mm 2000 mm
Max Auger Dia Earth 2000 mm 2200 mm
