Drilling auger drives

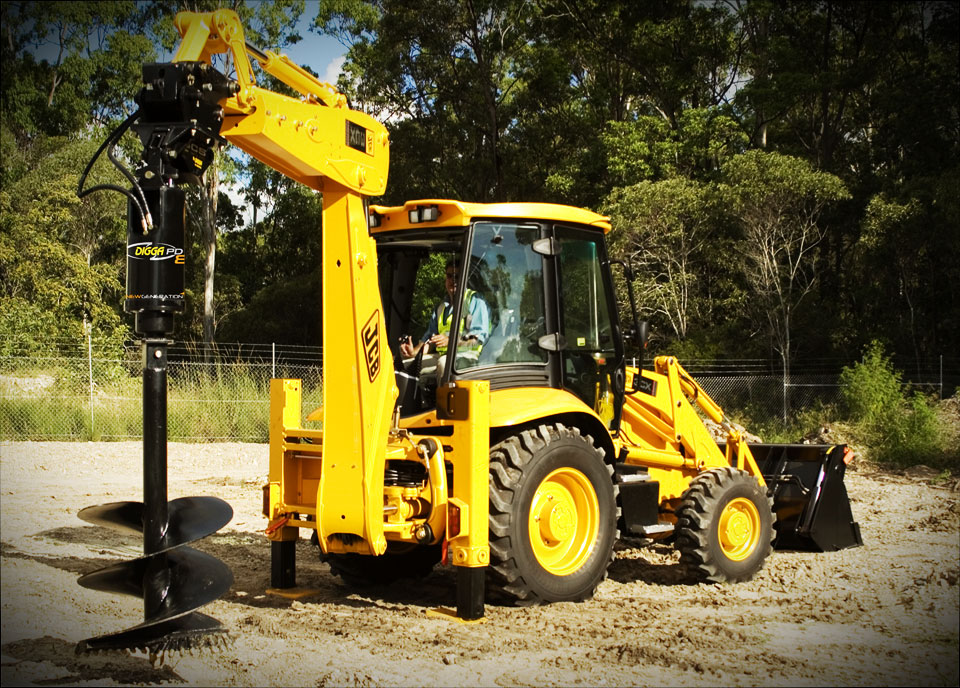

Excavator / Backhoe Auger Drives 5T-10T

Digga's PD5 to PD10HF range of earth drills are ideally suited for Backhoes and Excavators with a flow between 55 to 200 lpm. Innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimising your returns. Digga planetary auger drives are fitted with Digga/Danfoss bell motors specially designed for drilling and augering in most ground conditions.

  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with a DIGGA Bell Motor by Danfoss
  • No case drain required on excavators
  • Full range of shafts available upon request
  • Extreme duty shaft locking system
  • Low maintenance with 5yr gear box and 3yr motor warranty

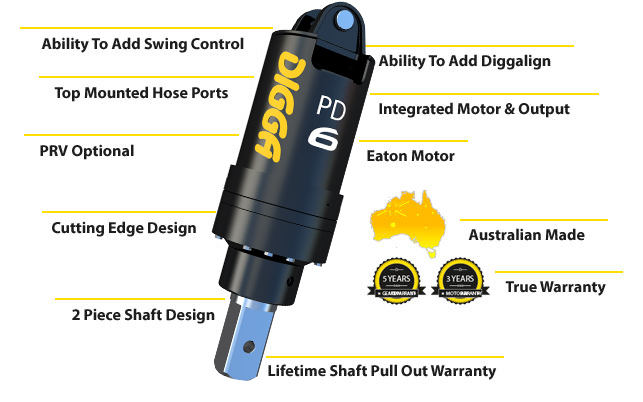

Features & Benefits

Digga drives come packed with really practical features like top mounted hose ports, cutting edge design, and a 2 piece shaft just to name a few. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.

specs see it in action

Premium Drive Specifications

Specification pd5 pd6 pd7 pd6hf pd8hf pd10hf
Rec Flow Range 60-95 lpm 70-115 lpm 75-115 lpm 60-150 lpm 80-200 lpm 100-200 lpm
Nominal Torque 5151 Nm 5596 Nm 6040 Nm 5634 Nm 7136 Nm 9690 Nm
Motor 2K Geroler 2K Geroler 2K Geroler 6K Geroler 6K Geroler 6K Geroler
Pressure Valve Fitted Optional Optional Optional Included Included Included
Energy Control Valve N / A N / A N / A Optional Optional Optional
Case Drain Required Case drain recommended for backhoe loaders.
Not required for excavators.
Max Pressure -
Do not exceed		 240 bar @ 60 lpm 240 bar @ 130 lpm
Max Flow -
Do not exceed		 115 lpm @ 130 bar 210 lpm
@ 145 bar		 230 lpm
@ 130 bar		 230 lpm
@ 130 bar
Max Power -
Do not exceed		 25 Kw (34 hp) 50 Kw (67 hp)
Overall Length 579 mm 730 mm 734 mm 950 mm 950 mm 950 mm
Diameter 240 mm 240 mm 240 mm 290 mm 290 mm 290 mm
Weight (no frame / hitch) 67 Kg 89 Kg 90 Kg 149 Kg 149 Kg 149 Kg
Std Output Shaft 75 mm Square 75 mm Square 75 mm Square 75 mm Square 75 mm Square 75 mm Square
Swing Control Optional Optional Optional Optional Optional Optional
Diggalign Optional Optional Optional Optional Optional Optional
Halo Optional Optional Optional Optional Optional Optional
Rec Auger 6 Series 6 Series 6 Series 6 Series 6 Series 8 Series
Max Auger Dia Clay / Shale 900 mm 900 mm 900 mm 900 mm 1000 mm 1000 mm
Max Auger Dia Earth 1000 mm 1000 mm 1000 mm 1200 mm 1200 mm 1500 mm
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
