Drilling auger drives



Micro Excavator Auger Drives 750Kg-2T

Digga's PDD to PDX2 range of drilling auger drive units and earth drills are ideally suited for micro excavators and small skid steer loaders with a flow between 15 to 55 lpm. Ideally used for drilling holes for fencing, tree planting, house foundations, and more. Innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimising your returns. Digga planetary auger drives are fitted with Digga/Danfoss bell motors specially designed for drilling and augering in most ground conditions.

  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with a DIGGA Bell Motor by Danfoss
  • No case drain required
  • Full range of shafts available upon request
  • Extreme duty shaft locking system
  • Drive fits down the hole for greater digging depth
  • Low maintenance with 5yr gear box and 3yr motor warranty

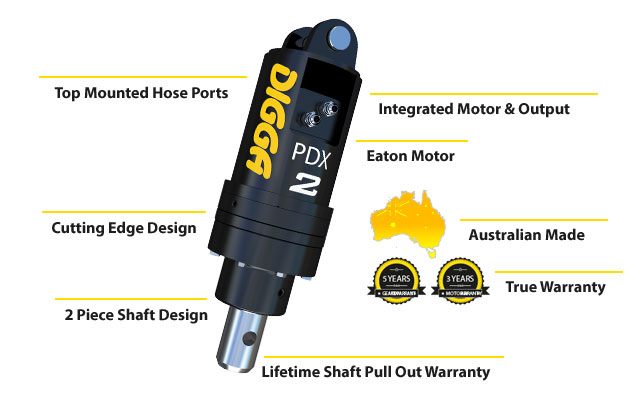

Features & Benefits

Digga drives come packed with really practical features like top mounted hose ports, cutting edge design, and a 2 piece shaft just to name a few. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.

specs see it in action

Premium Drive Specifications

Specification PDD PDX PDX2
Recommended Flow 15-45 lpm 20-50 lpm 30-50 lpm
Max Torque 1171 Nm 1743 Nm 2307 Nm
Motor 2K Geroler 2K Geroler 2K Geroler
Pressure Valve Fitted Optional Optional Optional
Energy Control Valve N / A N / A N / A
Case Drain Required No No No
Max Pressure - Do not exceed -   -   -   -   -   -   -   -   -   -   240 bar @ 60 lpm -   -   -   -   -   -   -   -   -   -
Max Flow - Do not exceed -   -   -   -   -   -   -   -   -   -   115 lpm @ 130 bar -   -   -   -   -   -   -   -   -   -
Max Power - Do not exceed -   -   -   -   -   -   -   -   -   -   25 Kw (34 hp)   -   -   -   -   -   -   -   -   -   -   -
Overall Length 557 mm 557 mm 557 mm
Diameter 187 mm 187 mm 187 mm
Weight (no frame / hitch) 41 Kg 45 Kg 45 Kg
Std Output Shaft 65 mm Round 65 mm Round 65 mm Round
Swing Control N / A N / A N / A
Diggalign N / A N / A N / A
Halo Optional Optional Optional
Rec Auger 4 Series 4 Series 4 Series
Max Auger Dia Clay / Shale 400 mm 400 mm 450 mm
Max Auger Dia Earth 500 mm 500 mm 600 mm
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
