Drilling auger drives

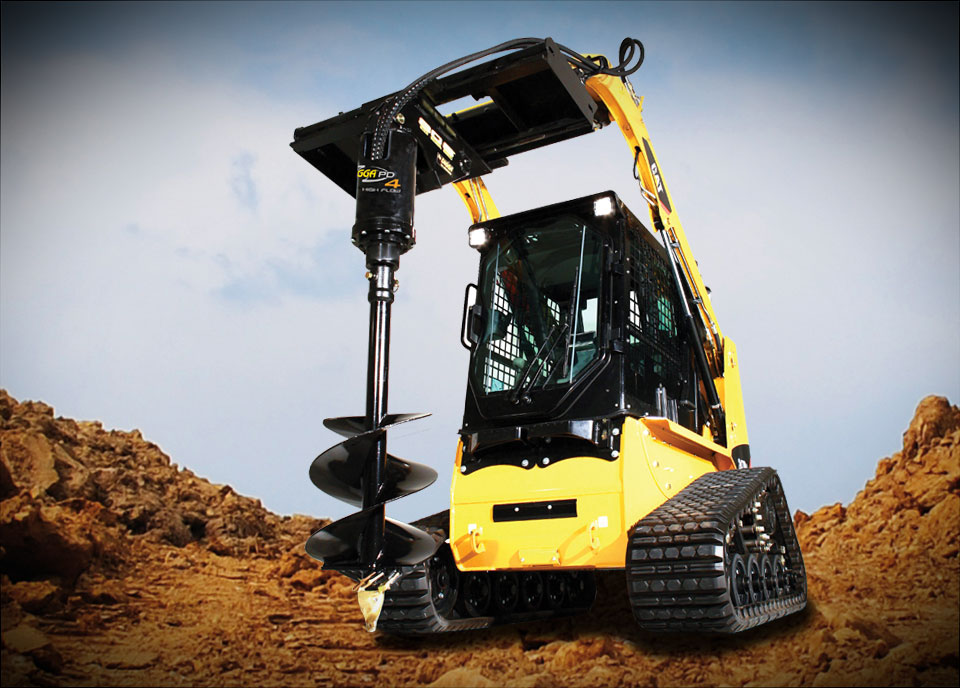

Skid Steer Loader High Flow Auger Drives

Digga's PD4HF to PD6HF range of drilling auger drive units are ideally suited for high flow skid steer loaders with a flow between 50 to 150 lpm and are fitted with Digga/Danfoss bell motors with intergrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimising your returns. Digga planetary auger drives are specially designed for drilling and augering in most ground conditions.

  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with a DIGGA Bell Motor by Danfoss
  • No case drain required
  • Full range of shafts available upon request
  • Extreme duty shaft locking system
  • Drive fits down the hole for greater digging depth
  • Low maintenance with 5yr gear box and 3yr motor warranty

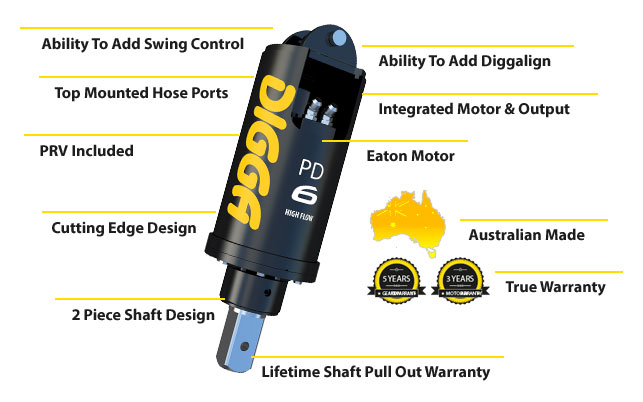

Features & Benefits

Digga drives come packed with really practical features like top mounted hose ports, cutting edge design, and a 2 piece shaft just to name a few. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.

specs see it in action

Premium Drive Specifications

Specification PD4HF PD6HF
Rec Flow Range 50-150 lpm 60-150 lpm
Max Torque 4473 Nm 5634 Nm
Motor 6K Geroler 6K Geroler
Pressure Valve Fitted Included Included
Energy Control Valve Optional Optional
Case Drain Required No No
Max Pressure - Do not exceed -   -   -   -   -   -   -   -   -   -   240 bar @ 130 lpm  -   -   -   -   -   -   -   -   -
Max Flow - Do not exceed 170 lpm @ 180 bar 210 lpm @ 145 bar
Max Power - Do not exceed -   -   -   -   -   -   -   -   -   -   50 Kw (67 hp)   -   -   -   -   -   -   -   -   -   -   -
Overall Length 950 mm 950 mm
Diameter 290 mm 290 mm
Weight (no frame / hitch) 125 Kg 149 Kg
Std Output Shaft 75 mm Square 75 mm Square
Swing Control Optional Optional
Diggalign Optional Optional
Halo Optional Optional
Rec Auger 6 Series 6 Series
Max Auger Dia Clay / Shale 750 mm 900 mm
Max Auger Dia Earth 1000 mm 1200 mm
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
