Extensions for auger drives.
Auger extensions - machines up to 30t
specs see it in action play video

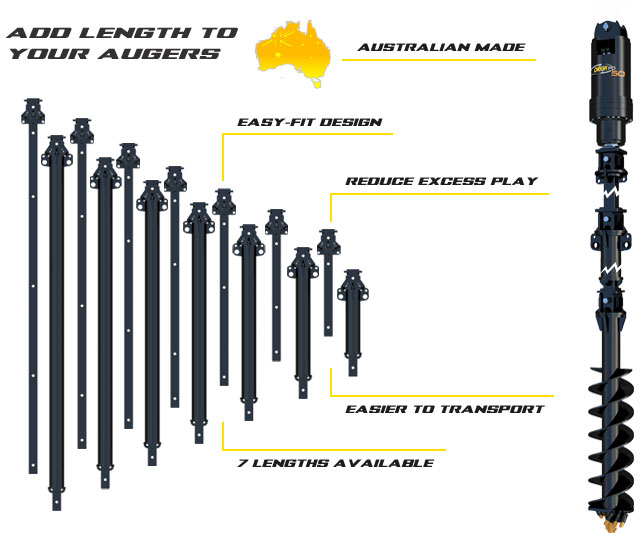

XO / XT 100 Auger extensions up to 30T

Digga’s drilling extension range is the ultimate in quality and cost effectiveness. Manufactured inhouse by Digga using only the highest grade materials and strictest quality control. The X0100 and XT100 range of extensions is suited for machines up to 30 tonnes.

Easy fit design auger extension - Digga Australia

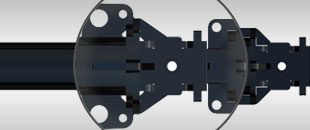

Easy fit design

Easy fit design with no adaptors required helping you connect and disconnect your augers faster. Featuring eyelets as lifting lugs and tie down points (telescopic) and eyelets to suspend the extension and auger in the hole while another is added or removed (outer).

Reduce excess auger drive and extension play - Digga Australia

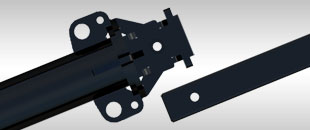

Reduce excess play

Welded hub and shaft reduces excess play in the connections ensuring a straighter hole.

Telescopic extensions make is easier to transport - Digga Australia

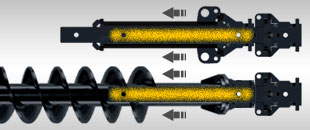

Telescopic extensions

Telescopic design makes it easier to drill deeper as well as easier to transport. Inner extensions can be slid inside outer extensions and augers saving space and reducing loading time.

7 lengths of auger extensions available - Digga Australia

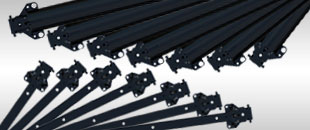

7 Lengths available

7 length options available including 1000 / 1500 / 2000 / 2500 / 3000 / 35000 / 4000 mm extension lengths.

Australian made - Digga Australia

Australian made

Our product quality and innovation leads the industry. 100% Australian made, designed and manufactured for Australian conditions, providing you with versatility, competitive pricing and a factory-backed warranty.

Specification XO100 XT100
Type Outer Inner
Auger Suitability RC10 / RC11 / DR11 RC10 / RC11 / DR11
Drive Suitability PD25-PD50 PD25-PD50
Machine Suitability 15-30 tonne 15-30 tonne
Maximum Torque 40000 Nm 40000 Nm
Standard Hub 100mm Square 100mm Square
Hub Options N / A N / A
Body (Dia x Wall) 168 mm x 11 mm 100mm Square Solid
Length Options 1000 / 1500 / 2000 / 2500 / 3000 / 3500 / 4000 mm
Availability Made to Order Made to Order
