Piling & Foundation Tools

Cleaning Buckets

Cleaning Buckets are used to remove spoil from holes after drilling to create a clean base.

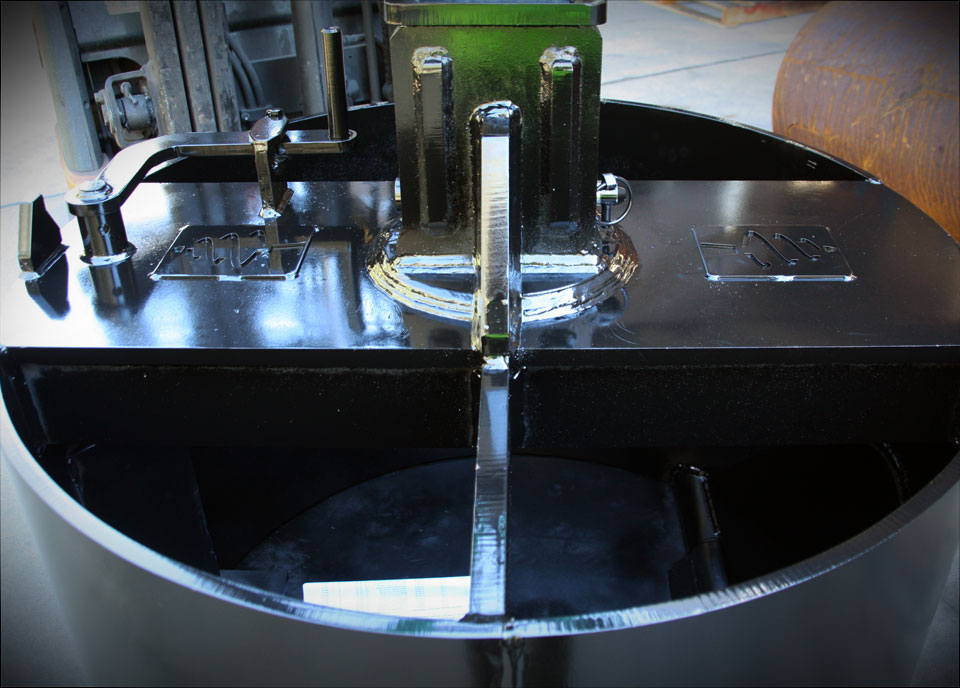

Digga Cleaning Buckets come fitted with a Kelly Box (drive hub) to suit your machine and can be fitted with a manual hand-operated, or automatic opening mechanism (for emptying) - For drill rigs fitted with striker plate.

  • Base options include swivel and valve style
  • Comes fitted with Kelly Box (drive hub) to suit your machine

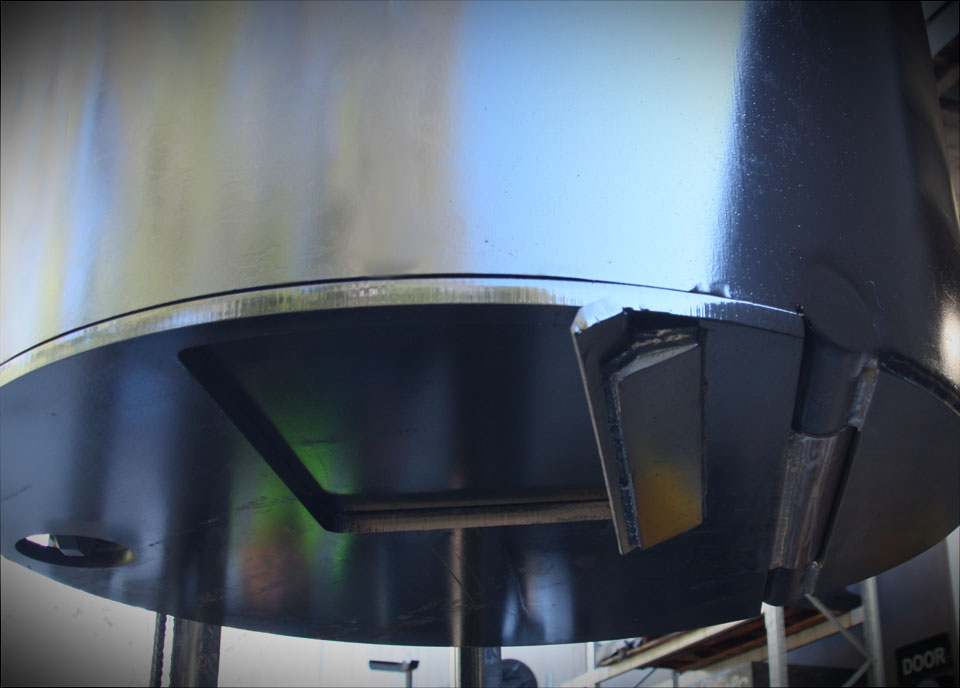

  • High tensile cutting edge for a cleaner hole & longer life span
  • Custom buckets including combination & rock available
  • Opening mechanism options include manual hand-operated
    and fully automatic (suits drill rigs with striker plate fitted)

Features & Benefits

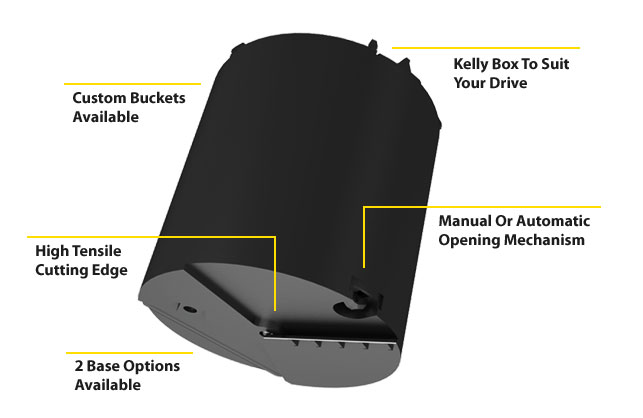

Digga earth cleaning buckets are made from the highest grade of metal and boast many practical features. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.

Cleaning Bucket Specifications

Model 400mm 450mm 500mm 600mm
Cutting Diameter 400mm (16”) 450mm (18”) 500mm (20”) 600mm (24”)
Overal Length 1500mm (60”) 1500mm (60”) 1500mm (60”) 1500mm (60”)
Base Type Swivel / Valve Swivel / Valve Swivel / Valve Swivel / Valve
Hub Options * 5, 7 5, 7, 9 5, 7, 9 5, 7, 9
Teeth Blade Blade Blade Blade
Model 750mm 900mm 1000mm 1050mm
Cutting Diameter 750mm (30”) 900mm (36”) 1000mm (40”) 1050mm (42”)
Overal Length 1500mm (60”) 1500mm (60”) 1500mm (60”) 1500mm (60”)
Base Type Swivel / Valve Swivel / Valve Swivel / Valve Swivel / Valve
Hub Options * 5, 7, 9 5, 7, 9 5, 7, 9 5, 7, 9
Teeth Blade Blade Blade Blade
Model 1200mm 1500mm 1800mm 2000mm
Cutting Diameter 1200mm (48”) 1500mm (60”) 1800mm (72”) 2000mm (80”)
Overal Length 1500mm (60”) 1500mm (60”) 900mm (36”) 900mm (36”)
Base Type Swivel / Valve Swivel / Valve Swivel / Valve Swivel / Valve
Hub Options * 5, 7, 9 5, 7, 9 5, 7, 9 5, 7, 9
Teeth Blade Blade Blade Blade
(*) Hub Options: 5 - 75mm Square | 7 - 100mm Square | 9 - 130mm Square.
