Debris Cleaner - Skid steer loaders
specs

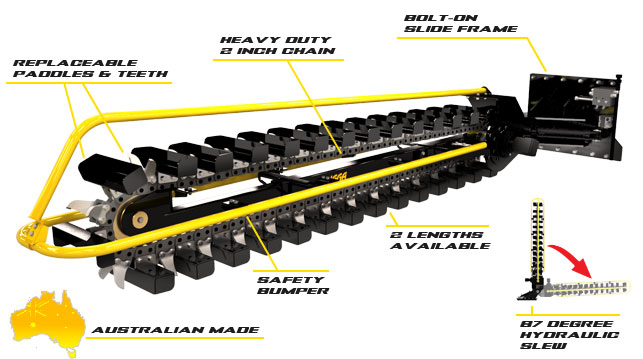

Debris cleaner for skid steer loaders

Quality Australian-made debris cleaner for removing overspill and debris from under conveyer belts in manufacturing and mining applications. Available in 2800mm and 3300mm reach.

Bigfoot trencher - Adjustable depth skid foot - Digga Australia

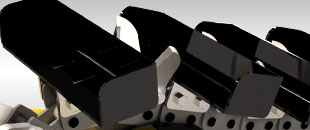

Replaceable paddles & teeth

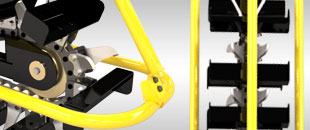

Tungsten teeth are located between the paddles to loosen harder materials. 350mm paddles & teeth can be replaced.

Bigfoot trencher - Adjustable depth skid foot - Digga Australia

Heavy duty chain with 2 lenths available

Debris cleaner sizes include 2800mm & 3300mm reach with a heavy duty 2in. chain that features an Anti-back Flex design which prevents the chain links from flexing back.

Bigfoot trencher - Adjustable depth skid foot - Digga Australia

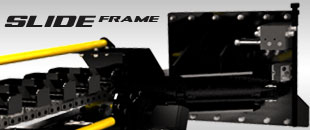

Bolt-on slide frame

A bolt-on slide frame allows the Debris Cleaner to be side shifted and attached to most skid steer loaders - most frame options are available.

Bigfoot trencher - Adjustable depth skid foot - Digga Australia

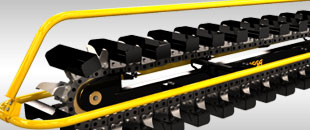

Safety bumper

Bumper & safety bar surrounds chain for added safety as well as protecting the paddles.

Bigfoot trencher - Adjustable depth skid foot - Digga Australia

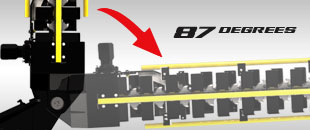

Hydraulic slew

The Digga Debris Cleaner boasts hydraulic slew up to 87 degrees (right from centre) with only 1 set of hydraulic machine remotes required.

Bigfoot trencher - Adjustable depth skid foot - Digga Australia

Made in Australia

Made from high quality components, our Debris Cleaners - including the gearbox and rollers, are fabricated in-house in Australia to ensure longevity, better performance, and a quality product all round.

Specification 2800 3300
Hydraulic Flow (Recommended Continuous) 75 lpm 75 lpm
Hydraulic Flow (Recommended Intermittent) 115 lpm 115 lpm
Max Pressure (Continuous) 205 bar 205 bar
Max Pressure (Peak) 240 bar 240 bar
Number of Paddles 25 30
Paddle Reach 2800 mm 3300 mm
Length 3325 mm 3820 mm
Height 715 mm 715 mm
Width 1031 mm 1031 mm
Weight 570 kg 635 kg
