Used & demonstration attachments

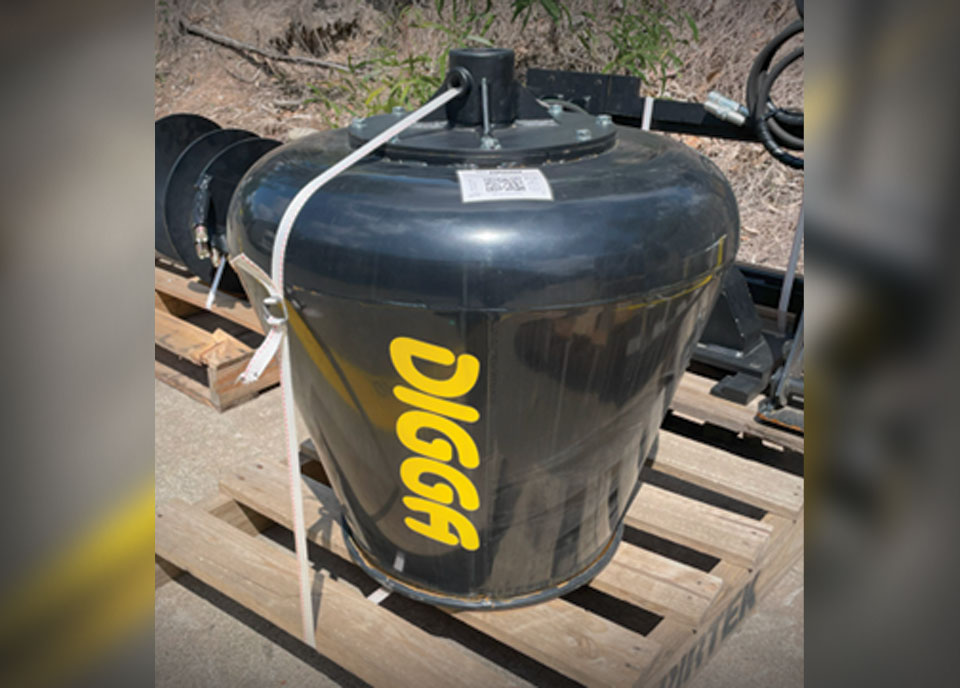

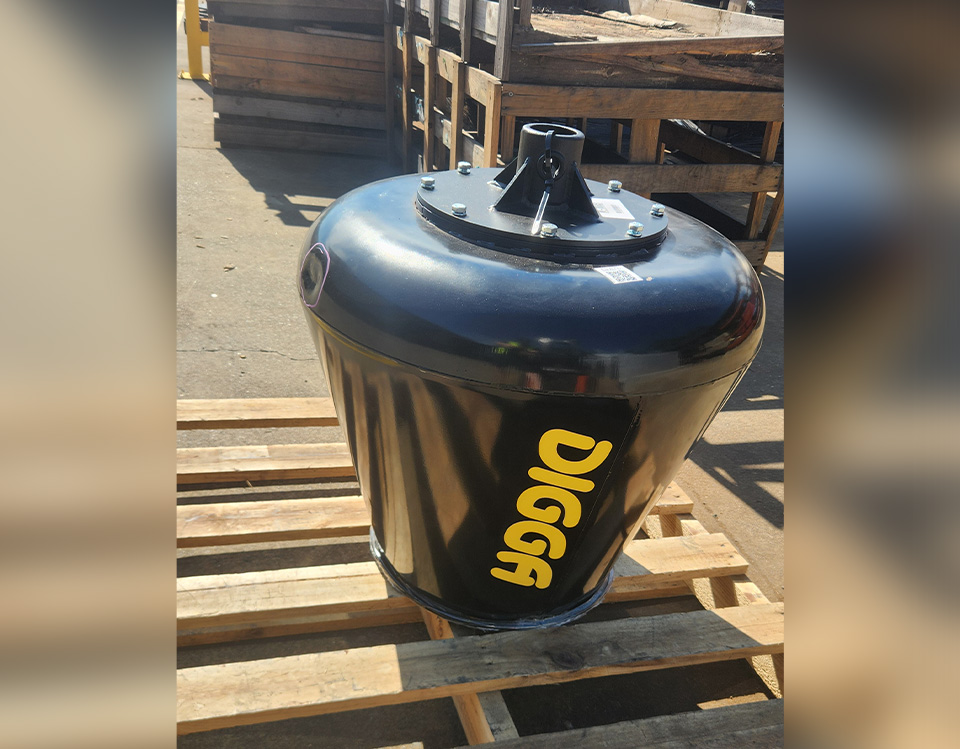

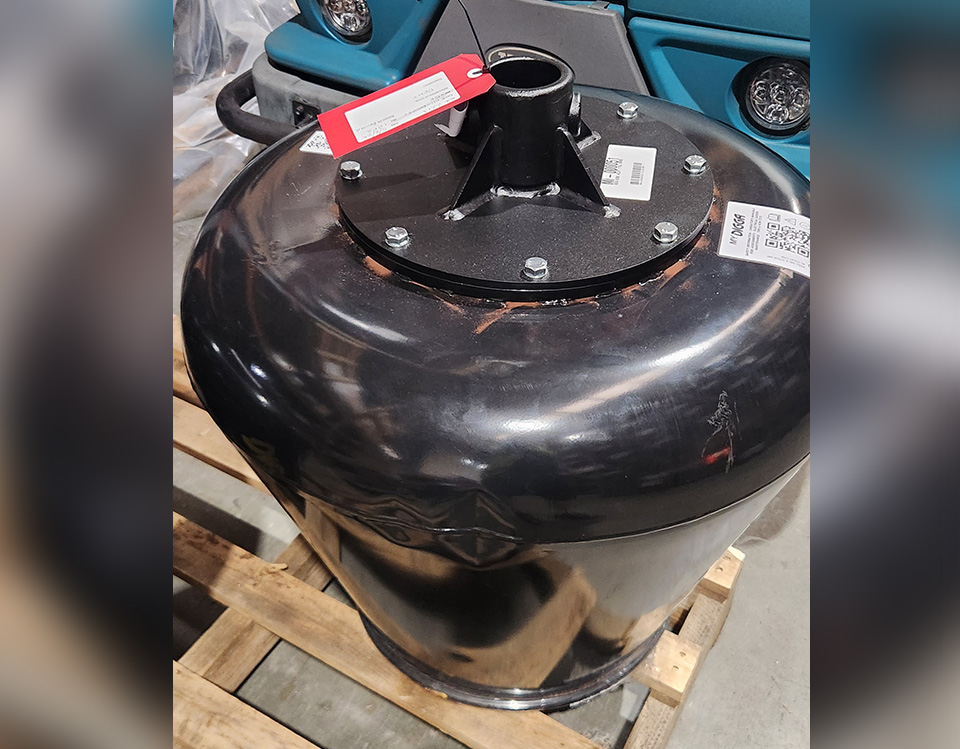

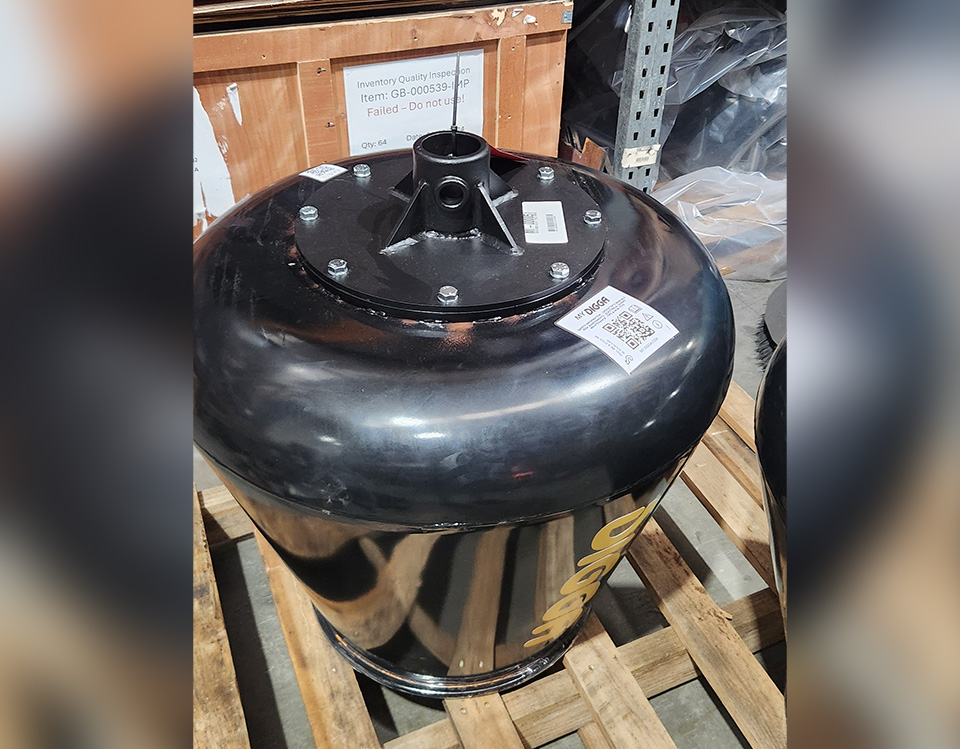

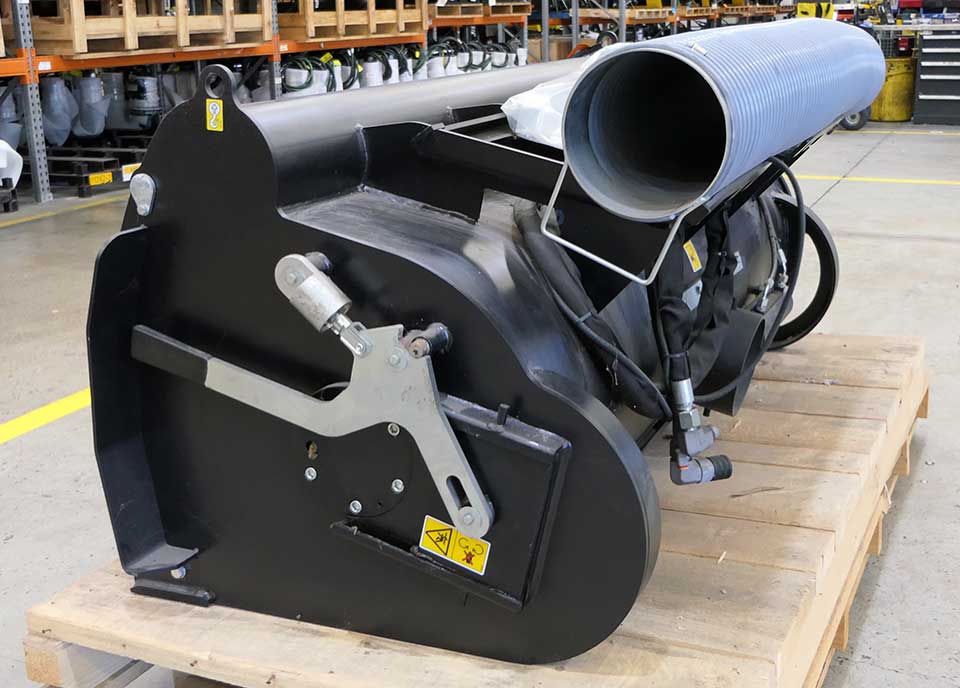

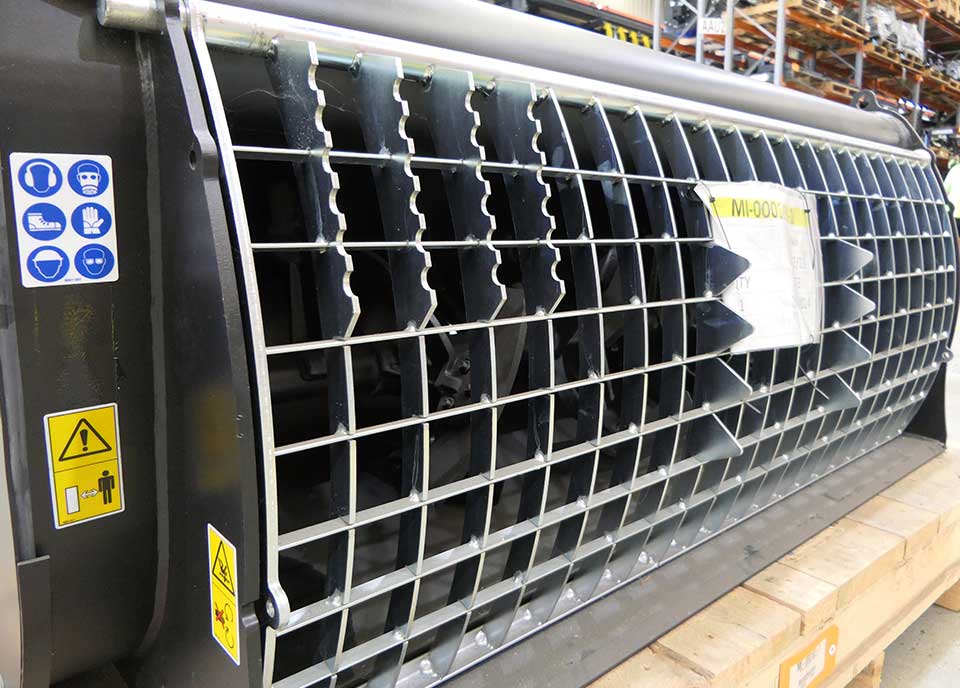

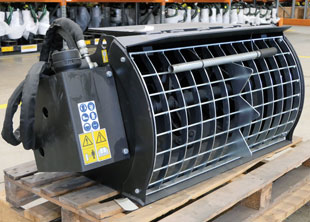

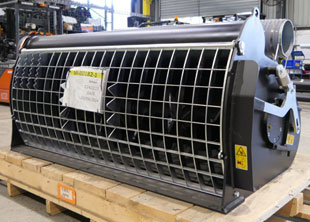

Cement Mixer

• Working Capacity: 4 Cu ft / 115L
• Length: 1424mm
• Width: 1212mm
• Weight (Bowl & Cradle): 53kg
• Location: QLD

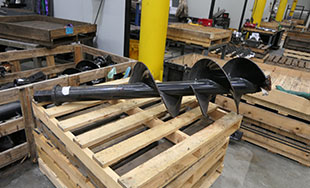

Augers - Bundle

• Bundle Includes: Four Augers:

150mm/6” suits 65mm round shaft, general purpose earth teeth (A4TL-06-2-E)

200mm/8” suits 50.8mm round shaft, general purpose TC teeth (A4TL-08-1-TC)

250mm/10” suits 65mm round shaft, general purpose TC teeth (A4TL-10-2-TC)

450mm/18” suits 65 round shaft rock combo MFT teeth (RC4-18-2-MFT)

• Notes: Can be priced and sold separately on request
• Location: QLD

Euro Hitch Pallet Forks

• Suits: Tractors with Euro Hitch
• Lifting Capacity: 1600kg
• Weight: 87kg
• Notes: Slight fault in the frame that causes tips of the tynes to sit at slightly different heights
• Location: QLD

Multifit Pallet Forks

• Suits: Multifit Skid Steer Loaders
• Lifing Capacity: 1500kg
• Weight: 150kg
• Tyne Width: 80mm
• Notes: Drive not inlcuded
• Location: QLD

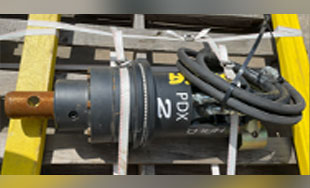

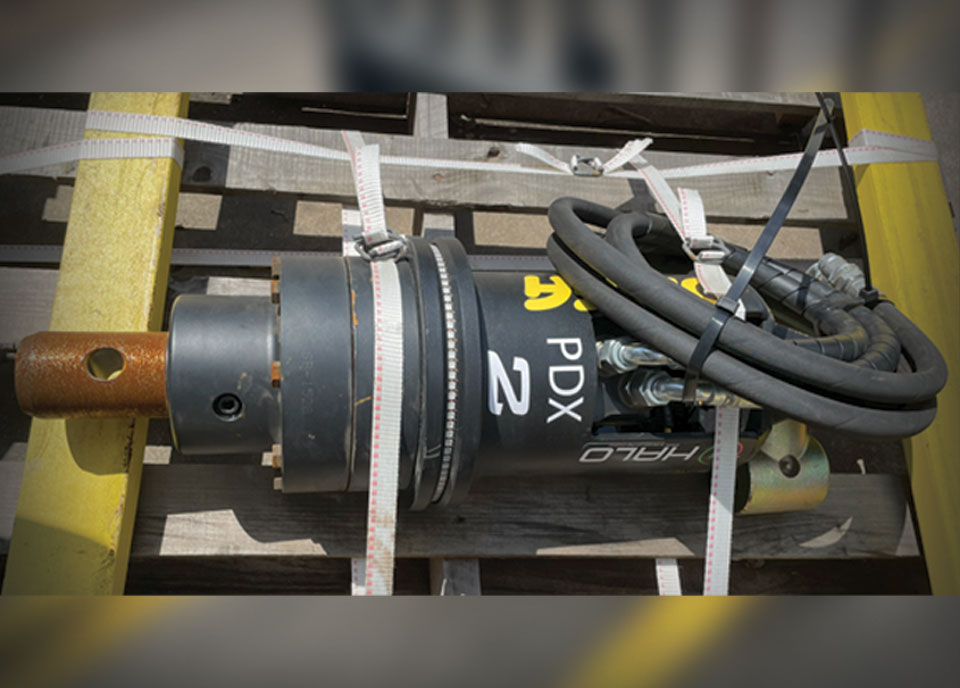

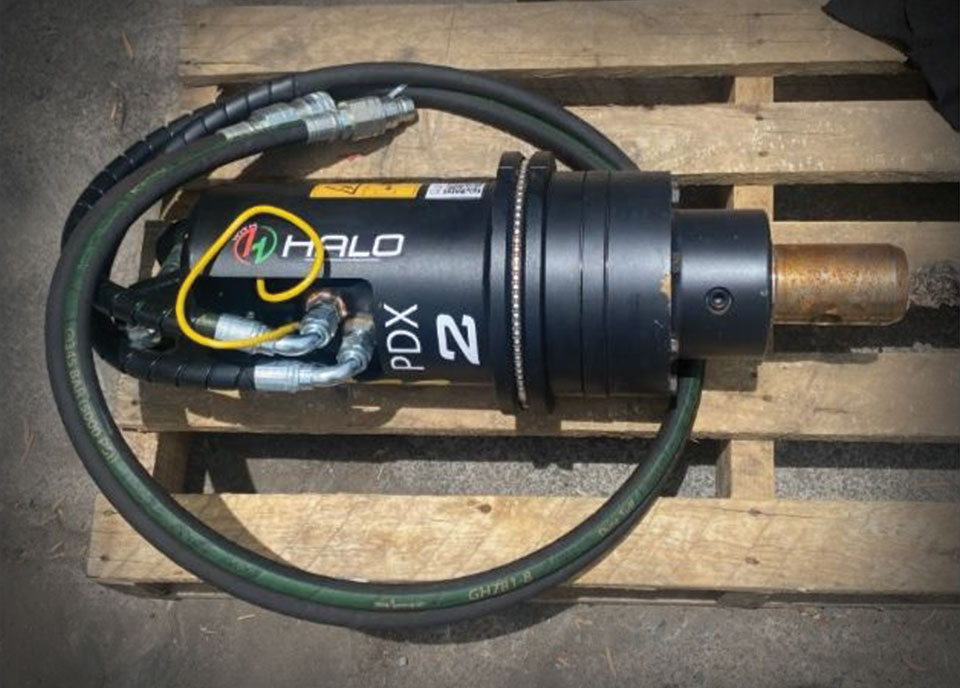

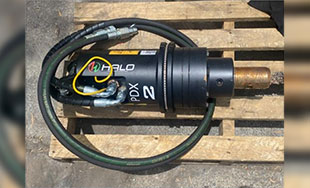

PDXH2-2 - AUGER DRIVE

• Suits: 2-5T Mini Excavators
• Req. Flow: 30-50 lpm
• Max Pressure: 240bar @ 60 lpm
• Shaft: 65mm round
• Included: Halo battery with 1m extension cable
• Location: QLD

PDH3-2 with Cement Mixer

• Suits: Skid Steer Loaders & 2-5T Mini Excavators
• Req. Flow: 45-75 lpm
• Max Pressure: 240bar @ 60 lpm
• Shaft: 65mm round
• Notes: Cement Mixer (115L) and Mixer attachment included
• Location: QLD

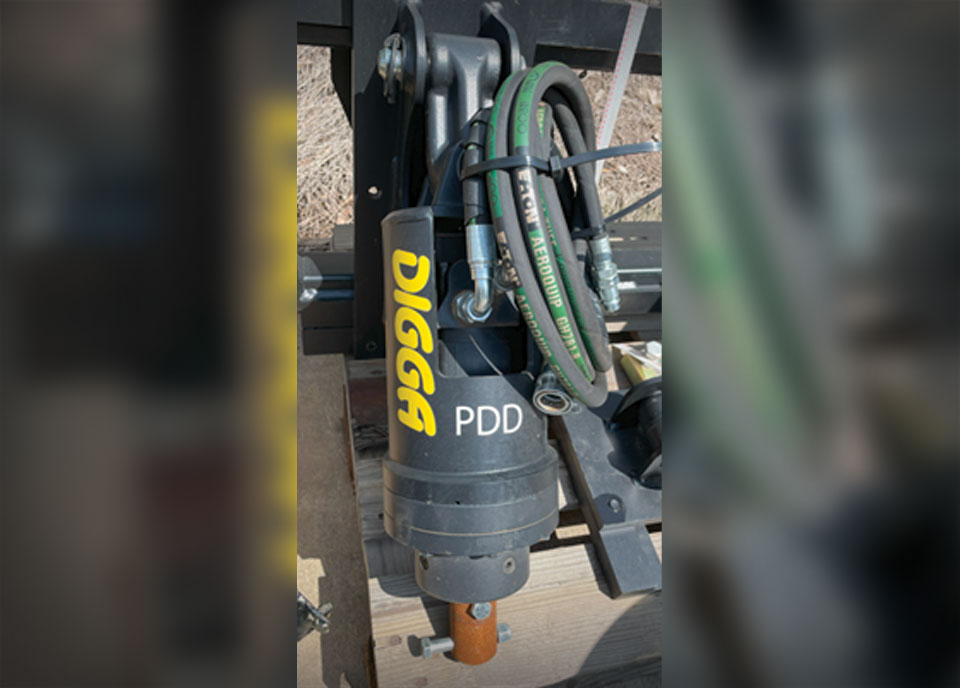

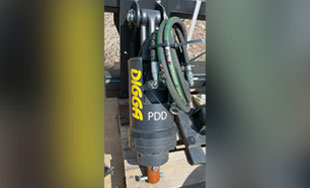

PDD-1 - AUGER DRIVE

• Suits: 750Kg - 2T Micro Excavators
• Req. Flow: 15-45 lpm
• Max Pressure: 240bar @ 60 lpm
• Shaft: 50.8mm round
• Notes: Euro Frame & Slide Cradle with Linkage Included
• Location: QLD

Hydraulic Stump Grinder

• Suits Multifit and CAT Skid Steer Loaders
• Part Number: SG-000023
• Required Flow: 60-80 lpm
• Overall Length: 1854mm
• Overall Height: 940mm
• Cutting Depth (Below Ground): 255mm
• Number of Cutting Teeth: 28
• Weight: 326kg
• Location: QLD

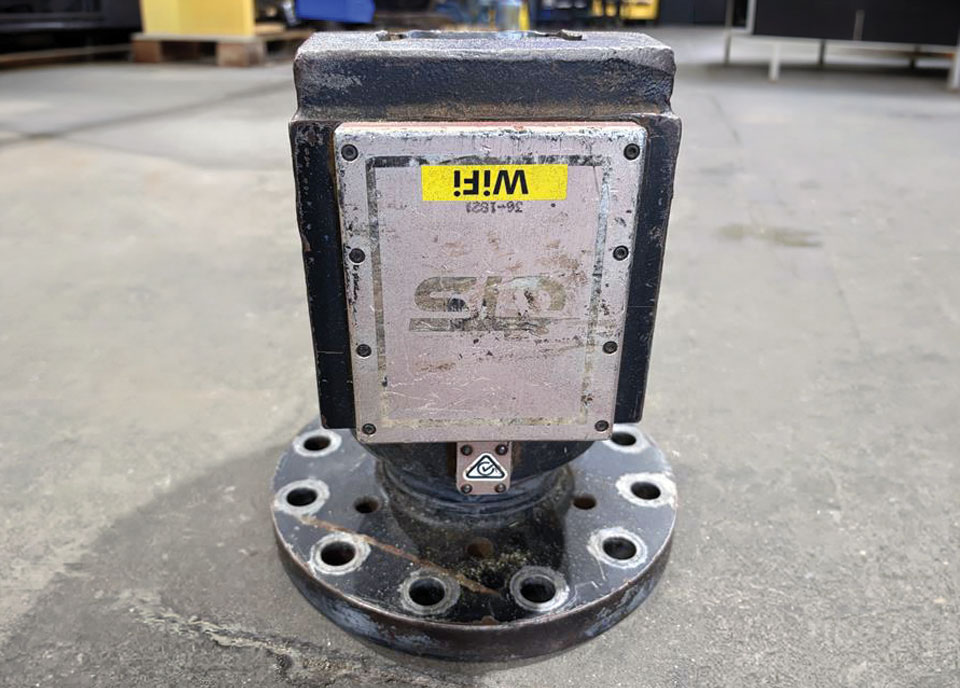

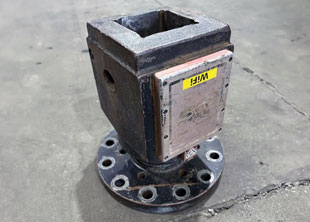

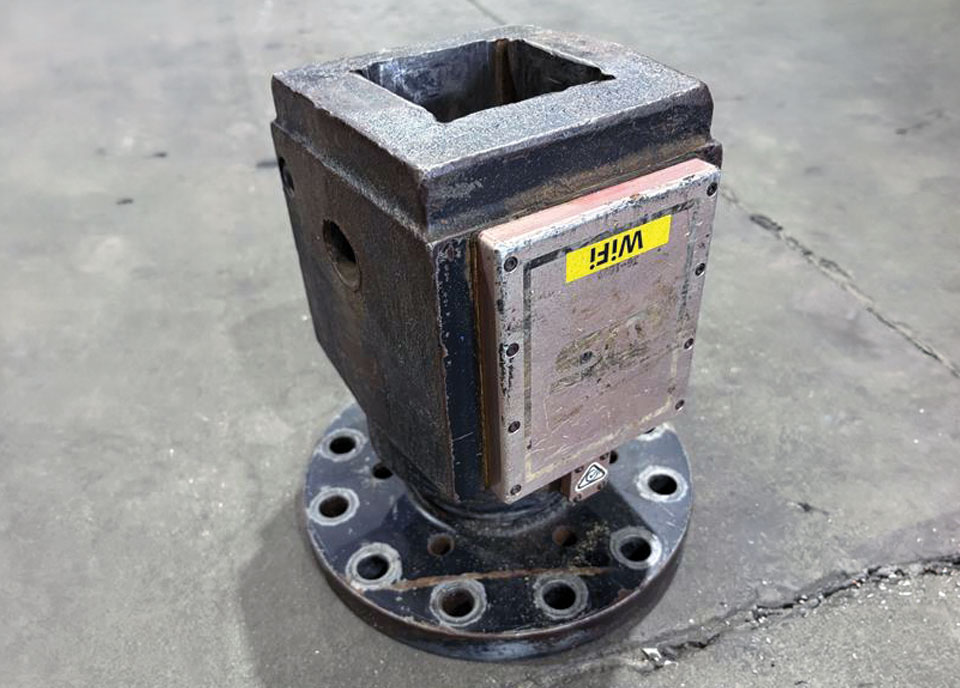

Torque Hub - 75mm Sq Complete Wifi Kit

• Part Number: DTL-001583
• Shaft: 75mm Square
• Height: 260mm
• Bolt Circle:
- 12 ea-5/8" on 7-5/8" B.C.
• Torque Rating (Max):
- 27,116Nm (7-5/8" BC)
• Weight: 37.2kg
• Location: QLD

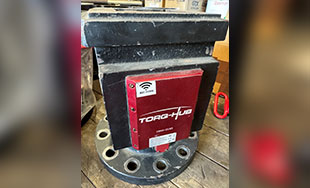

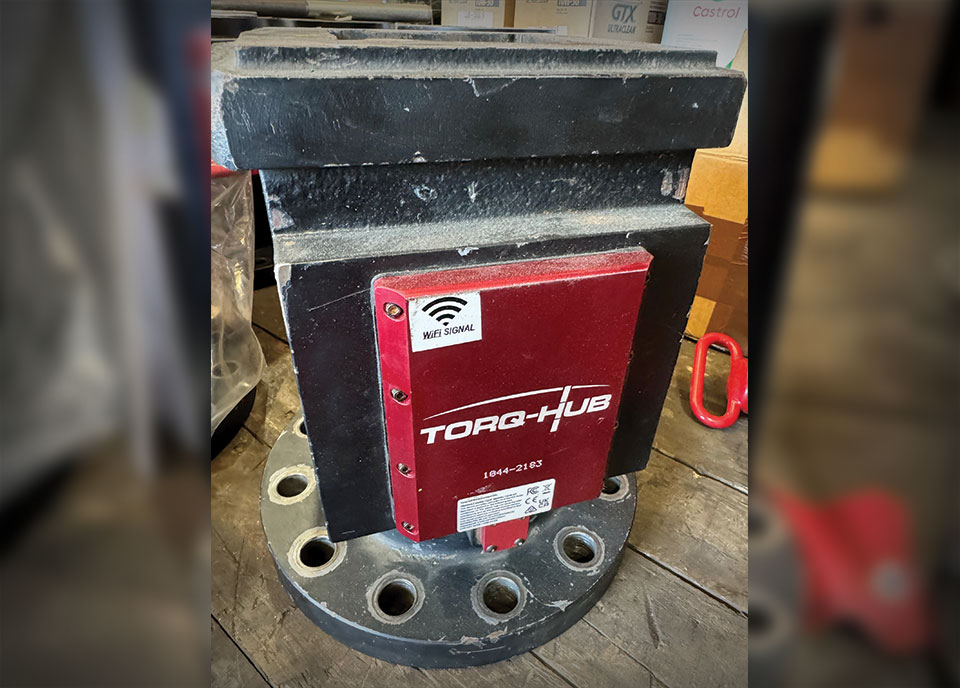

Torque Hub - 100mm Sq Complete Wifi Kit

• Part Number: DTL-001609
• Shaft: 100mm Square
• Height: 270mm
• Bolt Circle:
- 12 ea-3/4" on 8-5/8" B.C.
• Torque Rating (Max):
- 94,907Nm (7-5/8" BC)
• Weight: 60.3kg
• Location: QLD

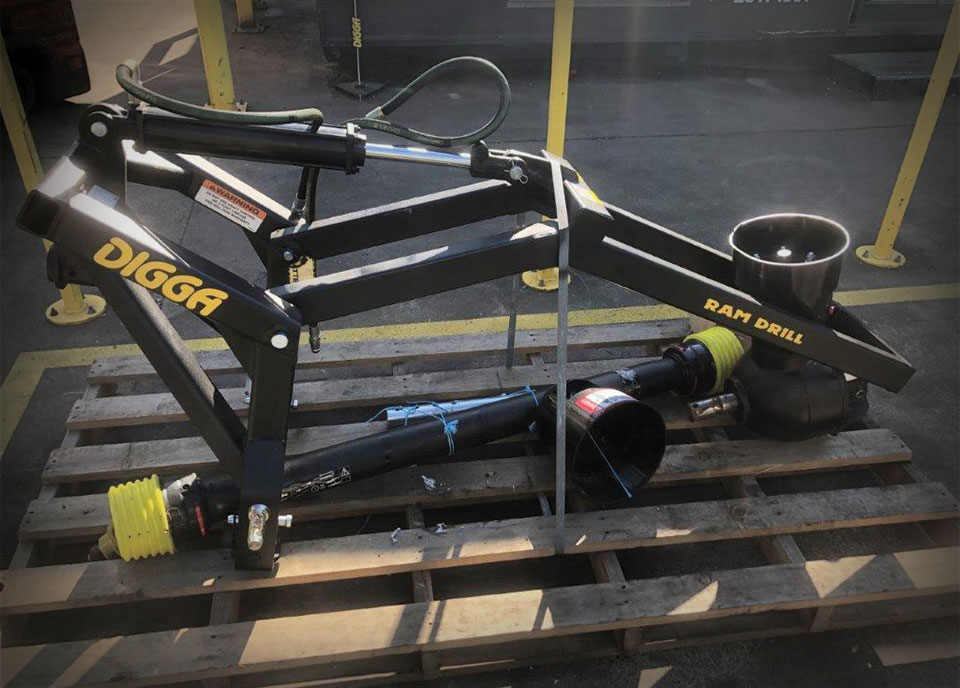

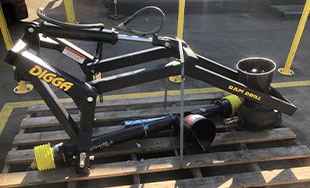

RAMDRILL PTO

• Suits: Tractors with a single auxiliary port & 75HP
• Length: 1759mm
• Width: 862mm
• Auxiliary Circuits Required: 1
• Weight: 250kg
• Location: QLD
• Part Number: RD-000320

VIBRATORY ROLLER

• Suits: Multifit and CAT model skid steers only
• Flow Range: 53-85 lpm
• Max Pressure: 205 bar
• Vibrating Speed: 2600 vpm
• Drum Type: Smooth
• Weight: 975kg
• Location: QLD
• Part Number: VB-000001

BURDER 8030 SLIDE FRAME

• Part Number: FR-000903
• Frame Overall Width: 1236mm
• Width Between Pickups: 1110mm
• Location: QLD

600MM OFFSET SLIDE FRAME

DUAL EURO HITCH & 3PT LINKAGE PICKUPS

• Part Number: FR-001336
• Overall Frame Width: 2045mm
• Suits 3pt Linkage Cat 1 & 2
• Location: QLD

600MM OFFSET SLIDE FRAME

DUAL EURO HITCH & 3PT LINKAGE PICKUPS

• Part Number: FR-001336
• Overall Frame Width: 2045mm
• Suits 3pt Linkage Cat 1 & 2
• Location: QLD

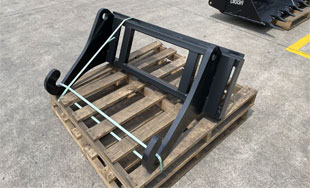

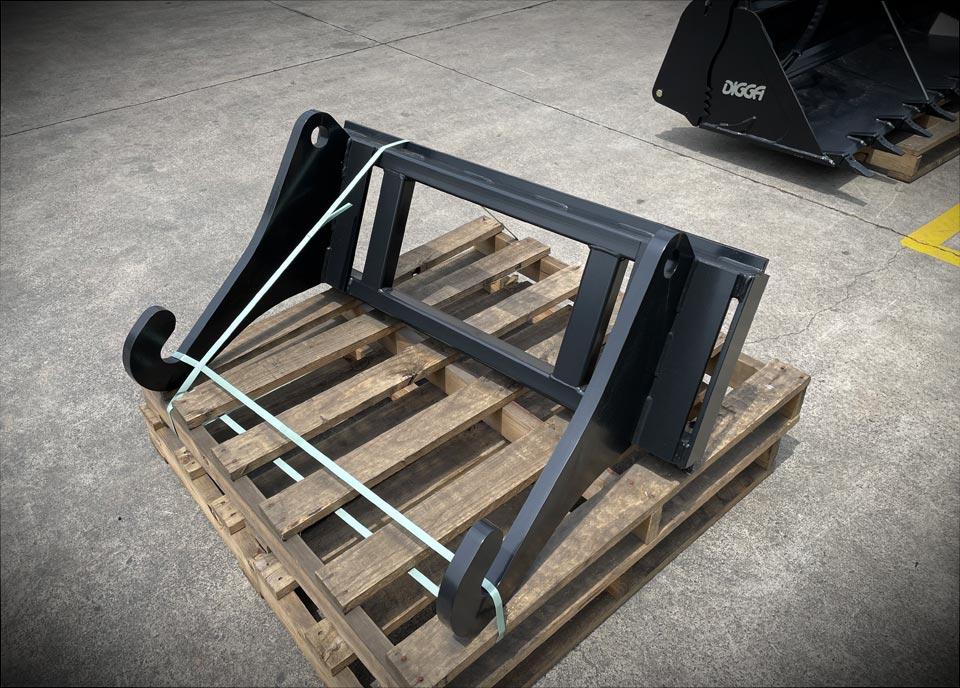

JCB 416 / 426HT SLIDE FRAME

• Part Number: FR-000409
• Overall Frame Width: 2199mm
• Suits 3pt Linkage Caterpillar 1 & 2
• Location: QLD

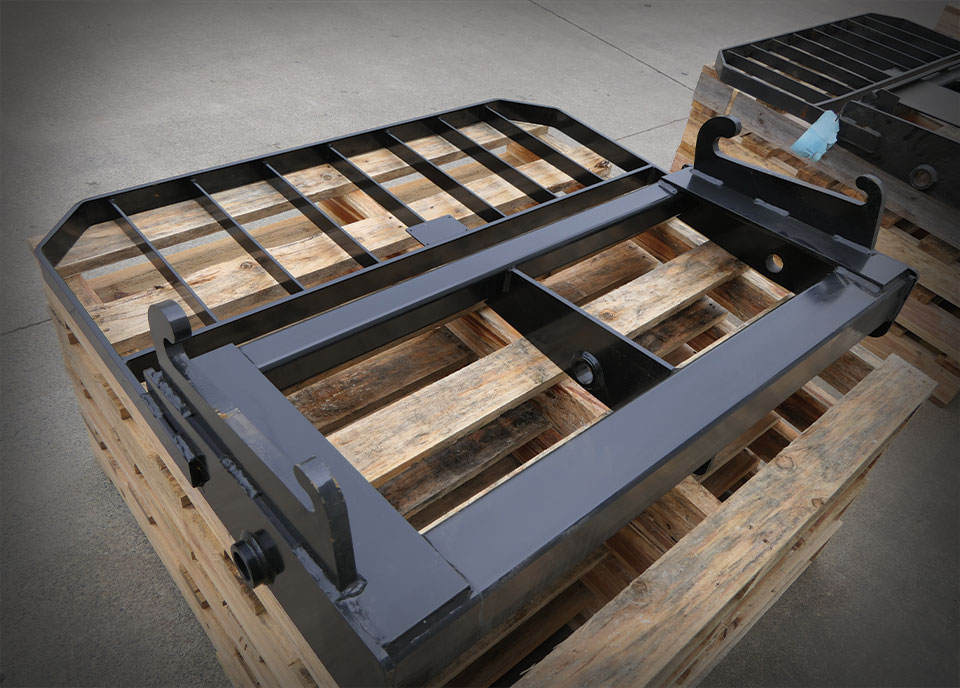

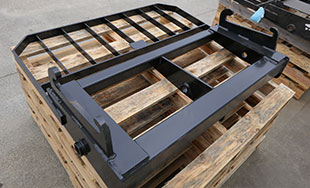

PALLET FORKS 1200KG SUITS BURDER 5400 & 5500

• Part Number: PF-000449
• Overall Frame Width: 1130mm
• Width Between Pickups: 1094mm
• Location: QLD
• Notes: Included Tynes

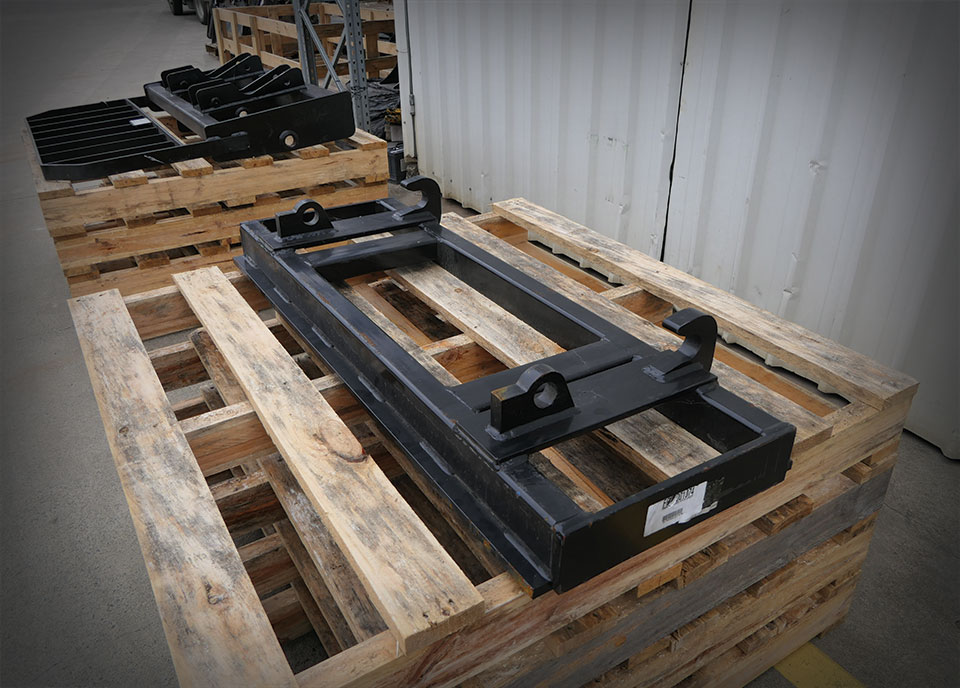

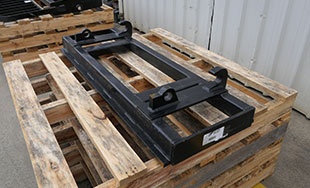

SLIDE FRAME TO SUIT CHALLENGE APC20 LOADER

• Part Number: FR-001074
• Overall Frame Width: 1224mm
• Width Between Pickups: 875mm
• Location: QLD

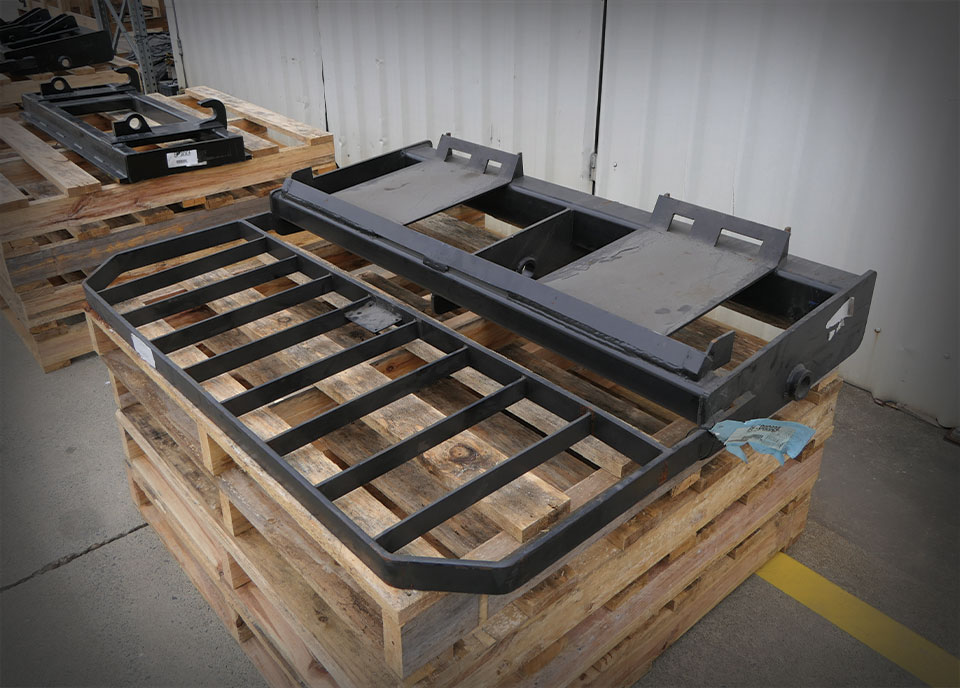

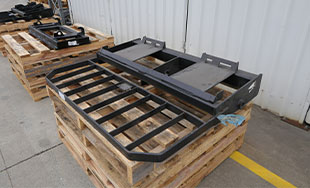

PALLET FORKS 1200KG COUGAR 8000

• Part Number: PF-000024
• Overall Frame Width: 1320mm
• Width Between Pickups: 1220mm
• Location: QLD
• Notes: Included Tynes

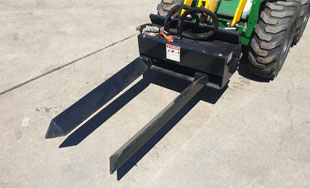

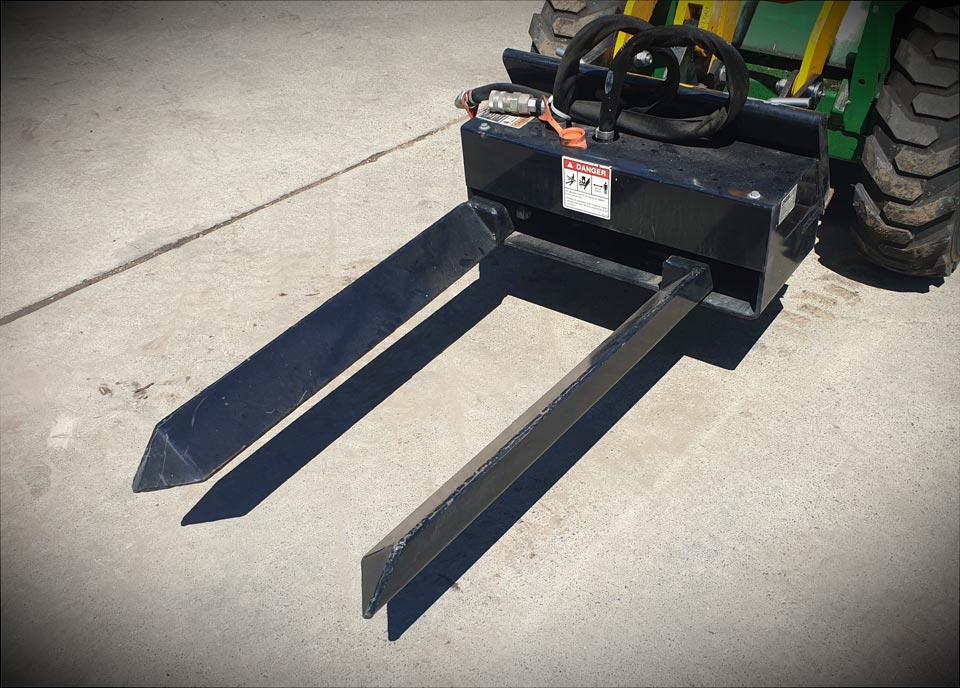

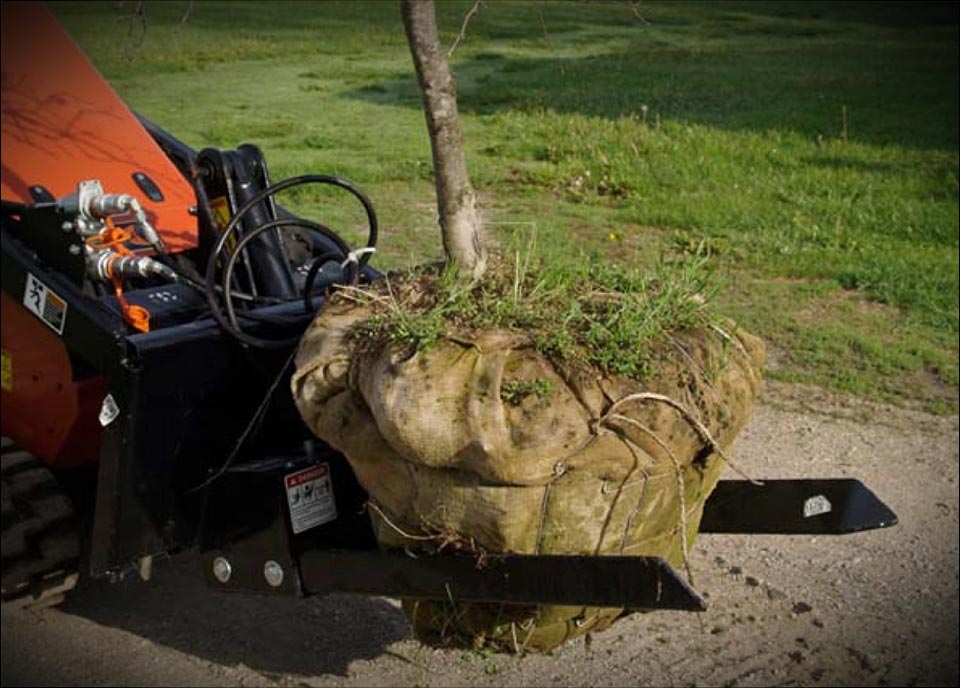

TREE FORKS

To suit most mini loaders

• Suits: Mini Multifit Pickup
• Weight: 77kg
• Width: 685mm
• Tyne Length: 840mm
• Location: QLD
• Part Number: ML-000076

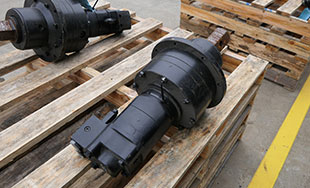

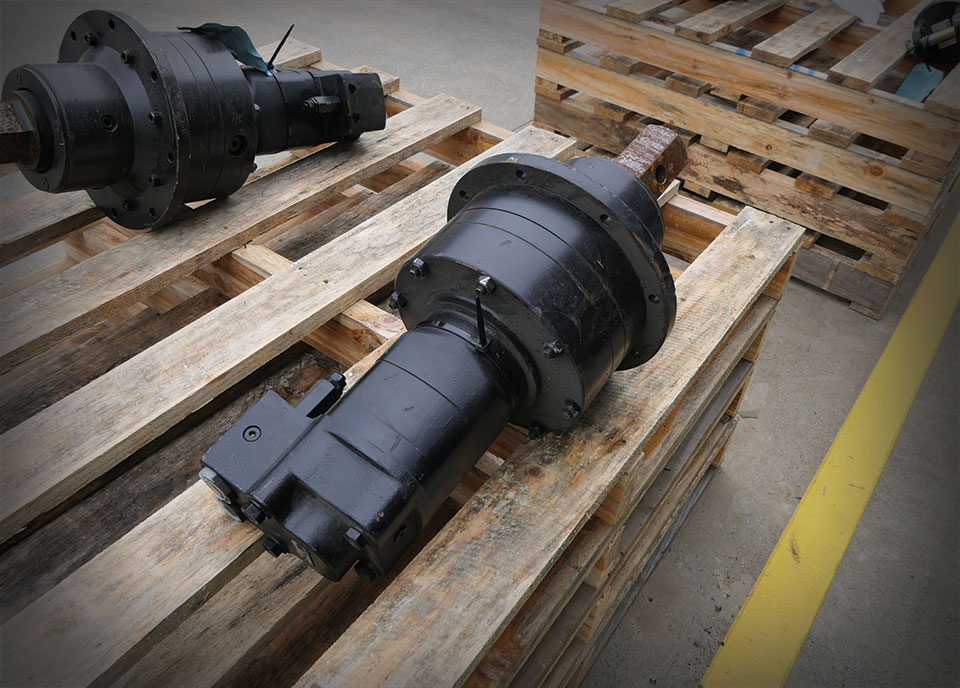

PD12HF - AUGER DRIVE

• Suits: Excavators
• Required Flow: 120-130lpm
• Max Pressure: 240bar @ 130lpm
• Shaft: 70mm hex
• Part Number: GB-003498
• Location: QLD
• Notes: Never Used - Comes with hood - purchase
• hitch separately

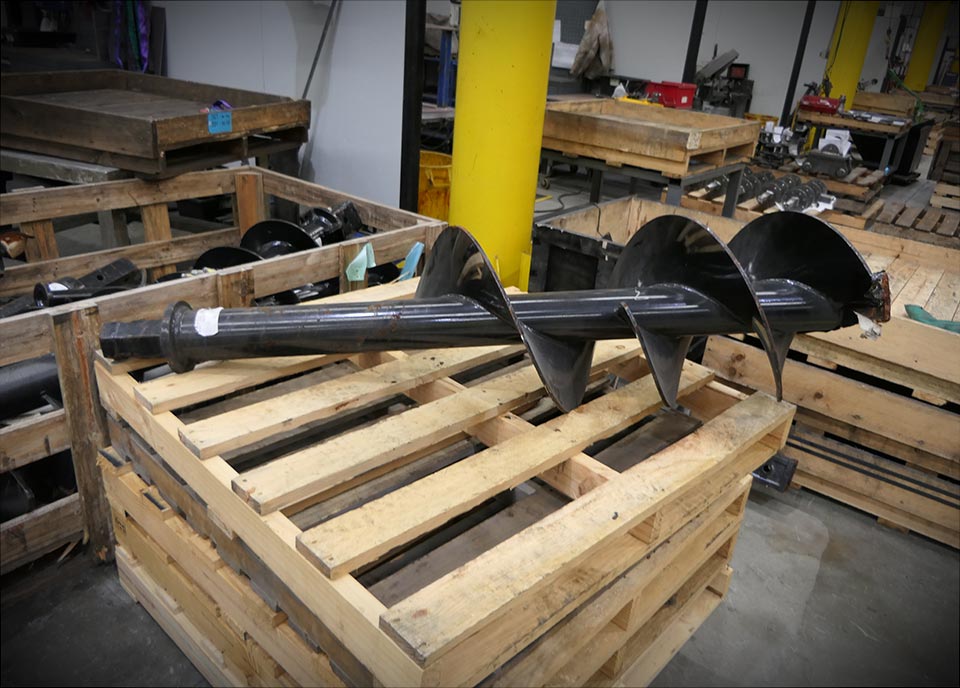

CUSTOM CLEANING AUGER

• Width: 500mm
• Length: 1700mm
• Cutting Head: No cutting head. Use as a cleaning auger or weld on your own teeth
• Hub: 2 Inch Hex
• Part Number: CUSTOM-UA
• Location: QLD

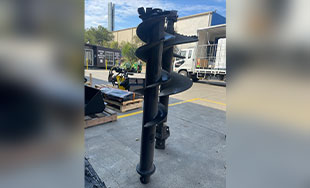

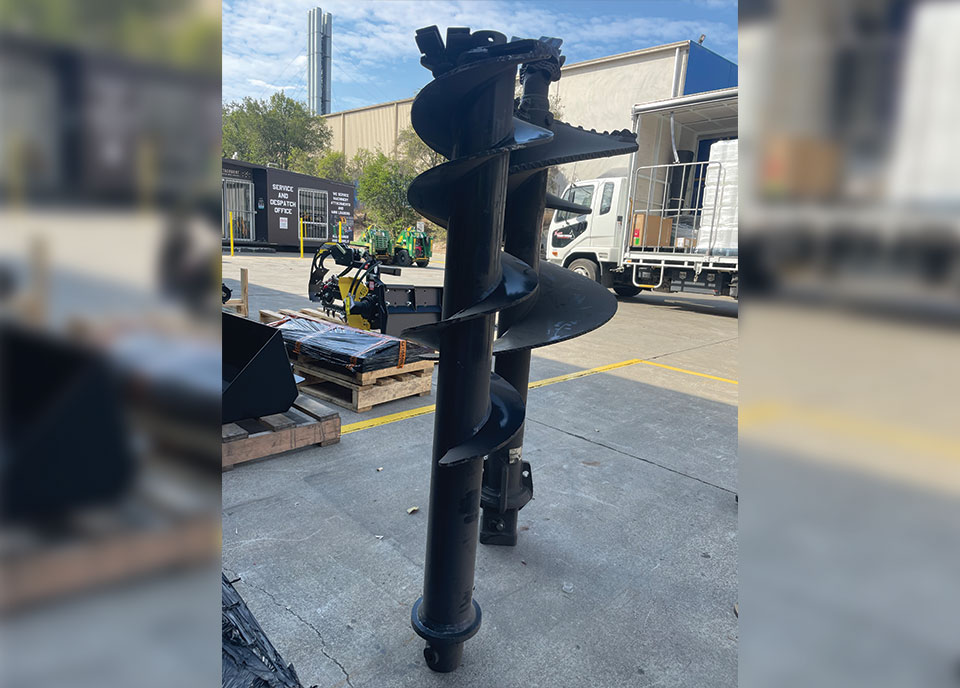

AUGER - A5-12-2

• Diameter: 300mm
• Length: 1320mm
• Cutting Head: General Purpose
• Hub: 65mm Round
• Part Number: A5-12-2
• Location: QLD

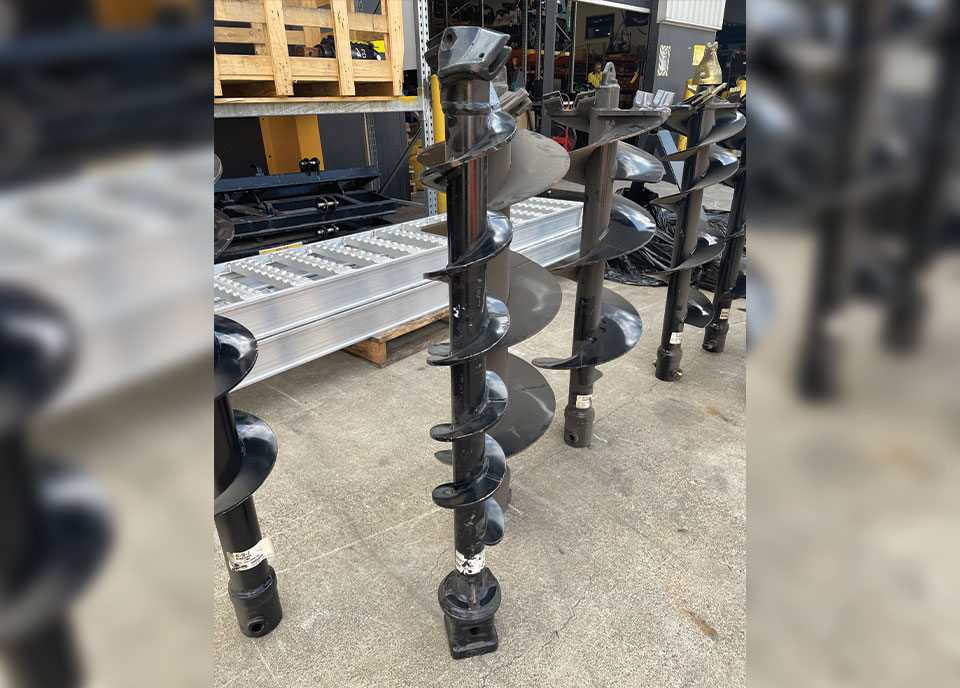

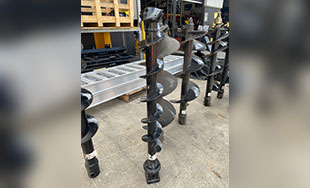

AUGER - A4TL-06-4

• Diameter: 150mm
• Length: 1165mm
• Cutting Head: General Purpose
• Hub: 57mm Square
• Part Number: A4TL-06-4
• Location: QLD

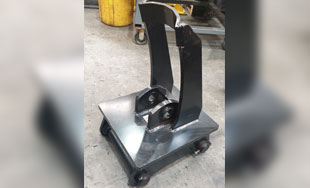

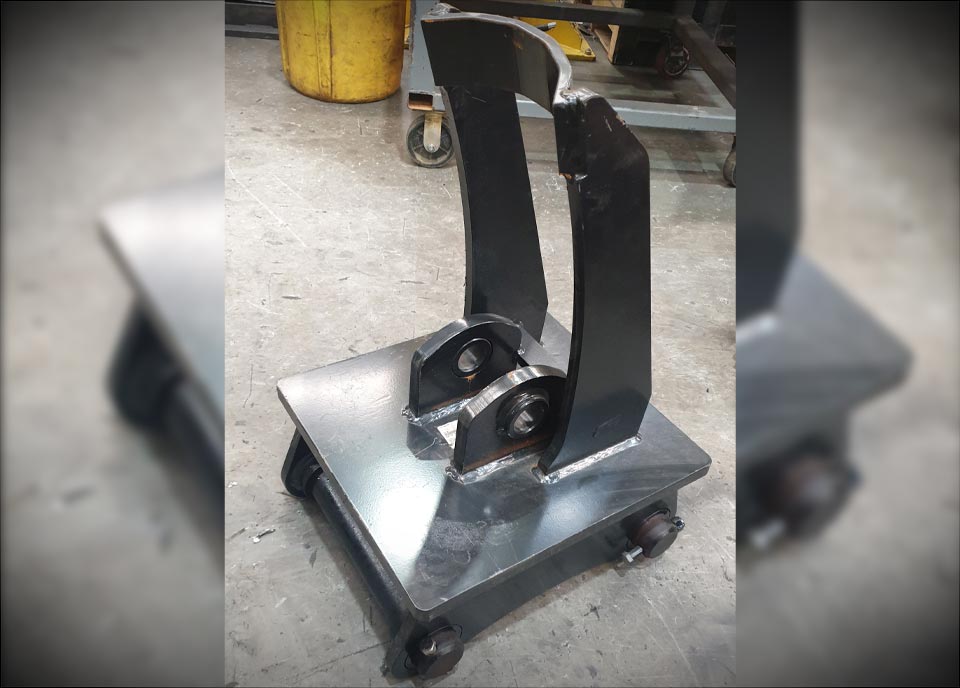

CRADLE HITCH - SUITS PD12 TO PD22

• Pin Center Distance: 405mm
• Pin Diameters: front 70mm - back 70mm
• Distance between hitch ears: 285mm
• Pin Style: Loose
• Suits Linkage: 100mm
• Part Number: HIW-001668
• Location: QLD

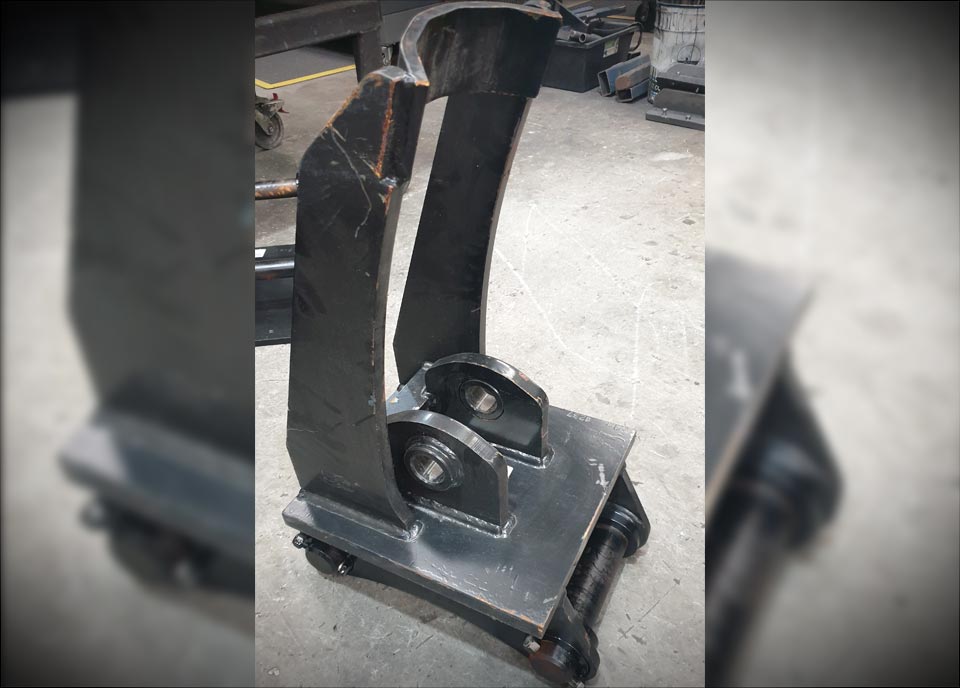

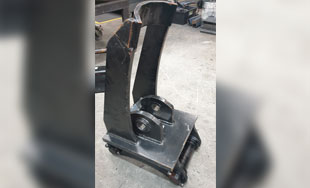

CRADLE HITCH - SUITS PD12 TO PD22

• Pin Center Distance: 375mm
• Pin Diameters: front 60mm - back 60mm
• Distance between hitch ears: 165mm
• Pin Style: Loose
• Suits Linkage: 100mm
• Part Number: HIW-001237
• Location: QLD

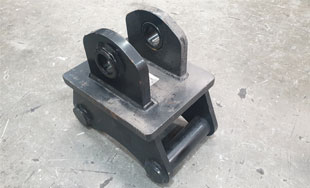

HITCH - SUITS 100MM LINKAGE

• Pin Center Distance: 290mm
• Pin Diameters: front 60mm - back 60mm
• Distance between hitch ears: 175mm
• Pin Style: Fixed
• Part Number: HIW-000232
• Location: QLD

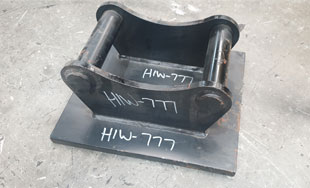

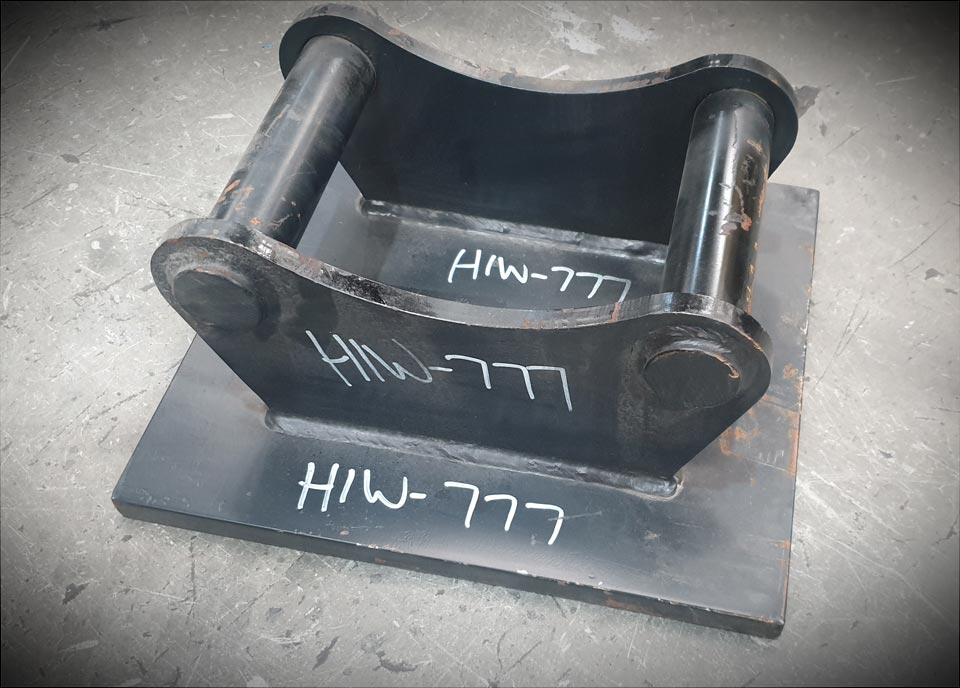

HITCH - BLANK PLATE

• Pin Center Distance: 285mm
• Pin Diameters: front 55mm - back 55mm
• Distance between hitch ears: 200mm
• Pin Style: Fixed
• Part Number: HIW-000777
• Location: QLD

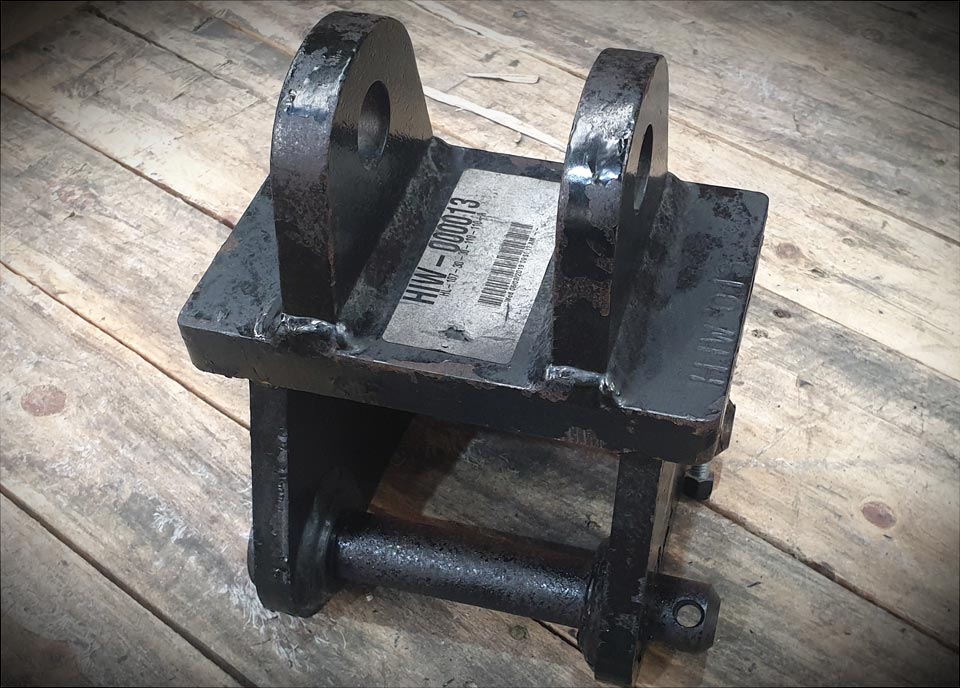

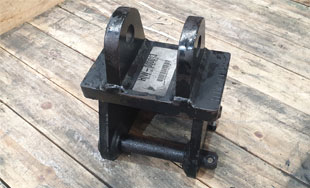

HITCH - SUITS 75MM LINKAGE

• Pin Center Distance: 107mm
• Pin Diameters: front 30mm - back 30mm
• Distance between hitch ears: 110mm
• Pin Style: Loose
• Part Number: HIW-000013
• Location: QLD

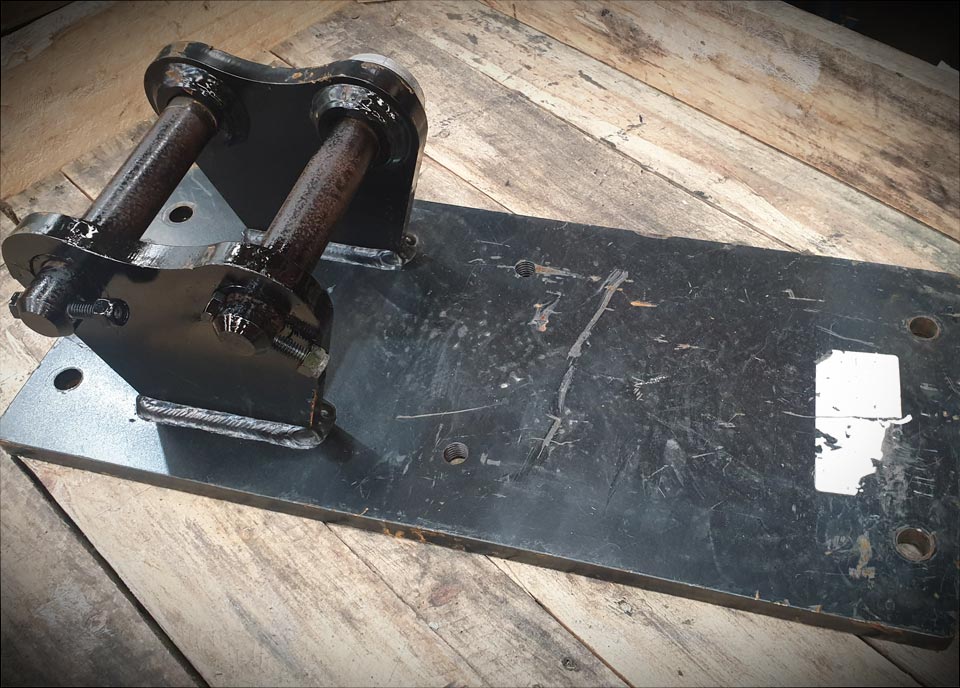

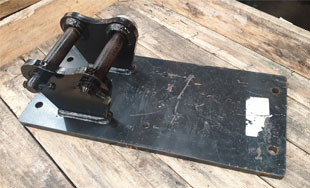

HITCH - SUITS UNDER ROAD BORER CRADLE & BIGFOOT XD

• Pin Center Distance: 105mm
• Pin Diameters: front 30mm - back 30mm
• Distance between hitch ears: 110mm
• Pin Style: Loose
• Part Number: HIW-001051
• Location: QLD

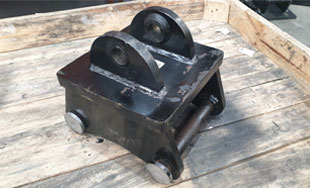

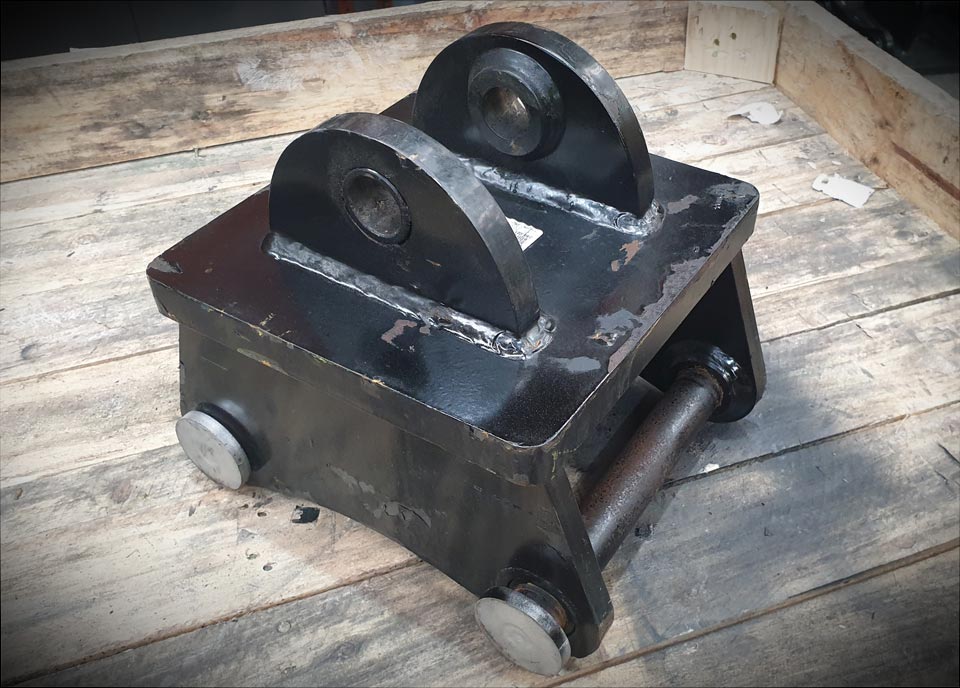

HITCH - SUITS 75MM LINKAGE

• Pin Center Distance: 230mm
• Pin Diameters: front 32mm - back 32mm
• Distance between hitch ears: 170mm
• Pin Style: Loose
• Part Number: HIW-001631
• Location: QLD

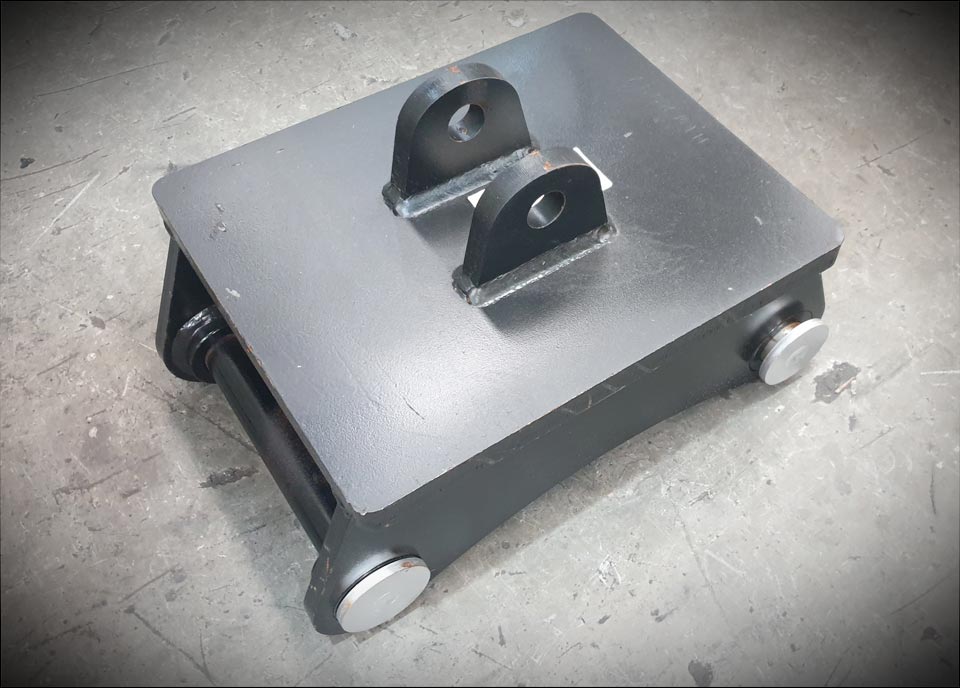

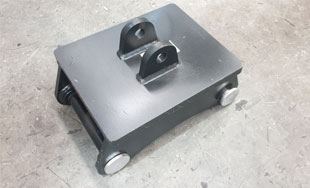

HITCH - SUITS 75MM LINKAGE

• Pin Center Distance: 365mm
• Pin Diameters: front 45mm - back 40mm
• Distance between hitch ears: front 260mm - back 140mm
• Pin Style: Loose
• Part Number: HIW-001788
• Location: QLD

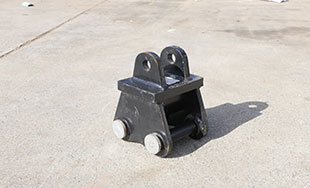

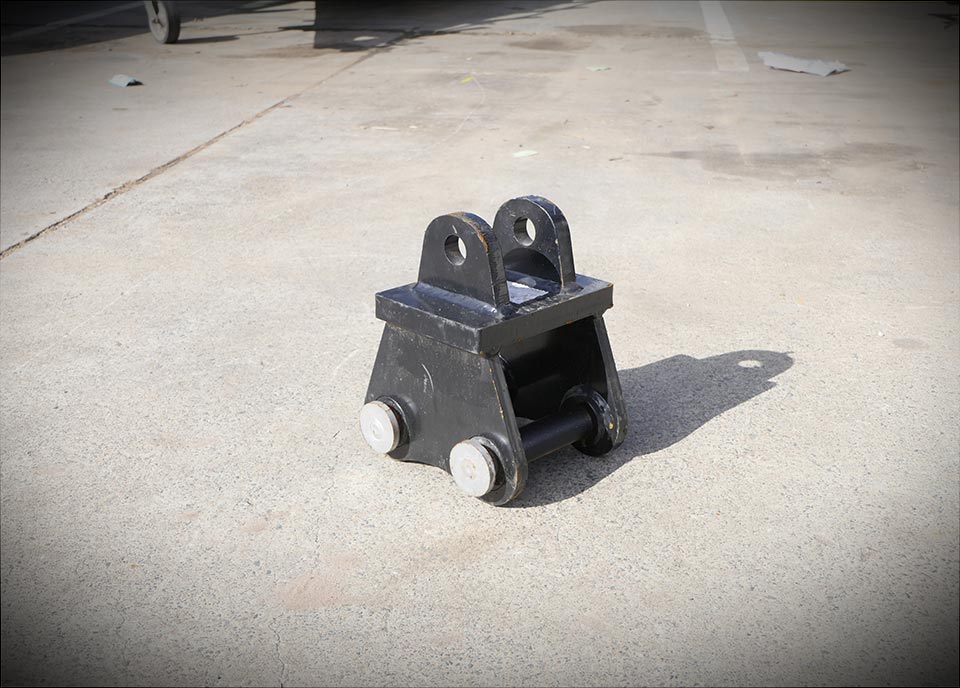

HITCH - SUITS AUGER DRIVES

• Pin Center Distance: 139mm
• Pin Diameters: front 35mm - back 35mm
• Distance between hitch ears: 110mm
• Pin Style: Fixed
• Part Number: HIW-001681
• Location: QLD
