Aluminium Loading Ramps

Aluminium Loading Ramps

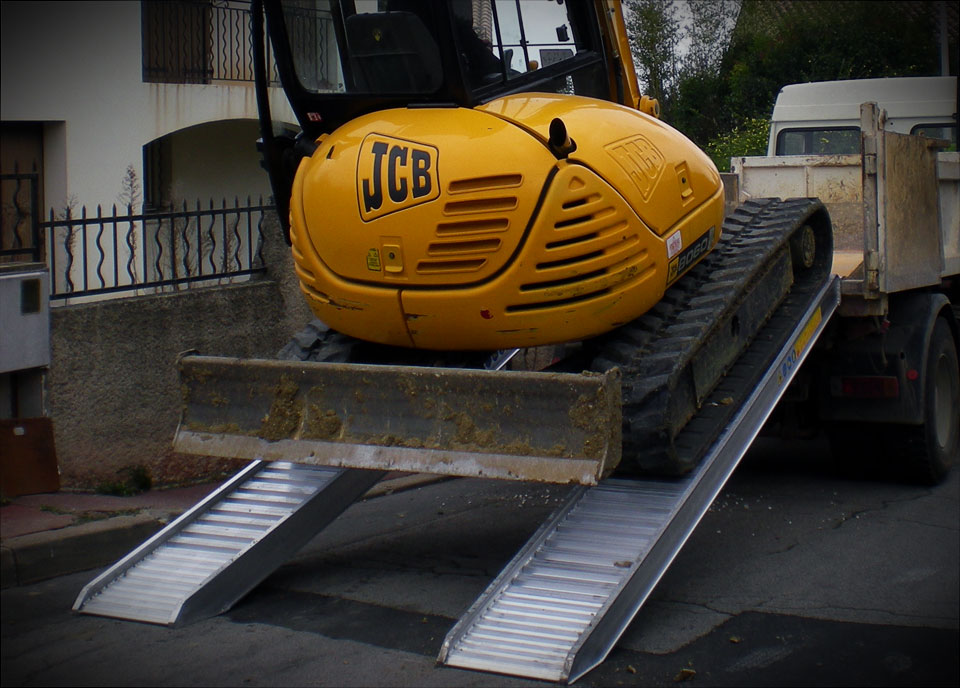

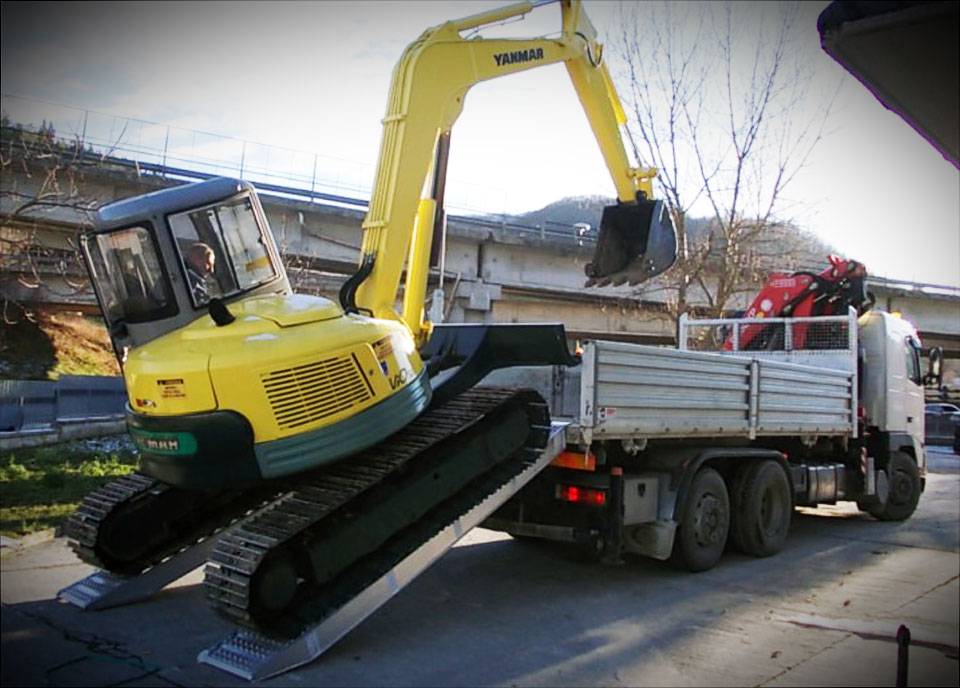

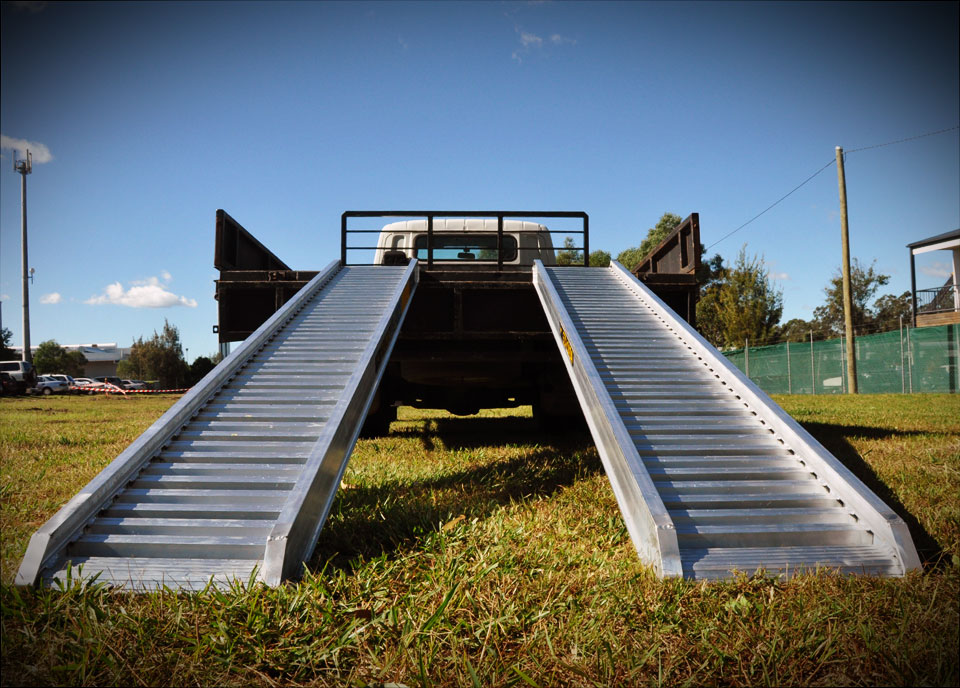

A light weight aluminium loading ramp with enhanced safety that delivers on quality, performance, and is cost effective. European designed and engineered, the Digga loading ramps feature the most advanced design in the Australian market today. Digga's aluminium loading ramps include a standard range (1t to 6.2t) and a Universal range (6.2t to 9t). The ramps are used to load excavators, skid steer loaders and mini loaders on trailers, tipper trucks and flat beds.

Loading Ramps Features & Benefits

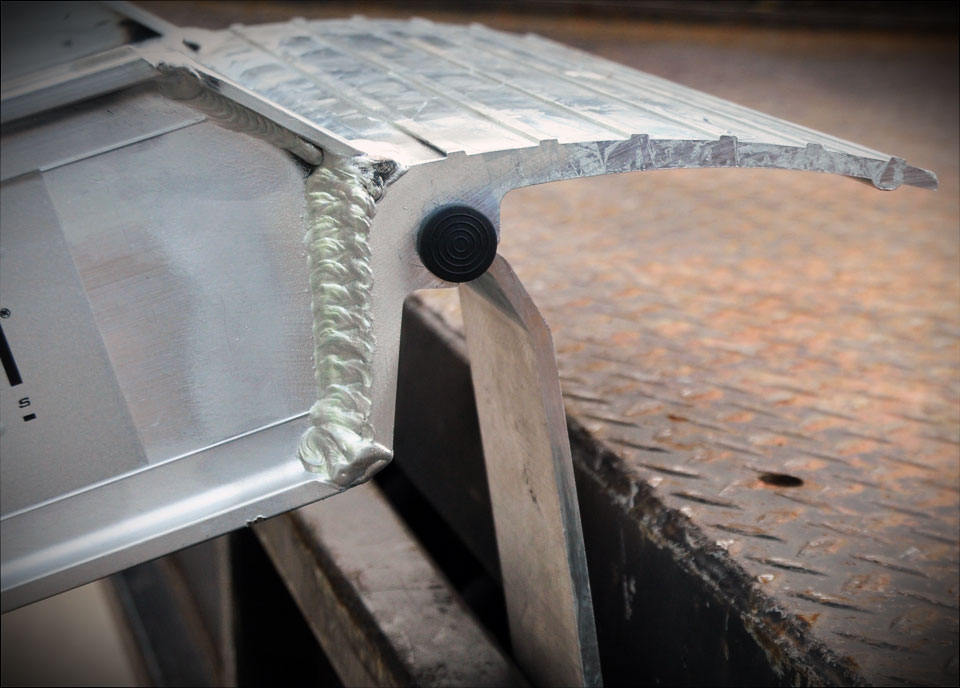

  • Patented extruded double T-rail with interlocking rungs
  • 3 different connection methods
  • Enhanced beam strength
  • 18 Month Warranty
  • CE and TUV certification
    EN 1999-1-1:2010 & NA:2010-12
  • New stronger rung design
  • Reinforced bottom and top rungs
    Length of reinforcement differs on every ramp model
  • Low to the ground bottom rung
  • Superior strength & durability

Features & Benefits

The Digga aluminium loading ramp range comes packed with practical features as well as cutting edge design. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.*



*LR353535 ramps shown.
Designs may vary depending
on ramp tonnage.

Standard Loading Ramp Range

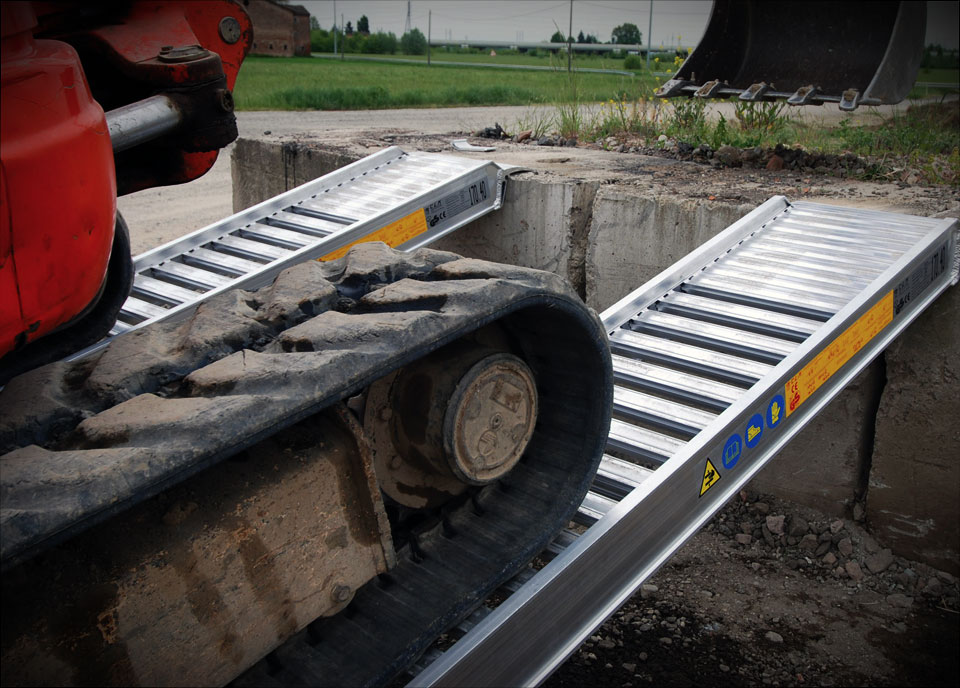

  • Suitable for rubber tyres and rubber track machines
  • Rung design prevents clogging up with mud, stones, and other debris reducing the risk of tyre/track slippage
  • New rung design cleans the wheels/tracks as machines climb the ramp, minimising debris taken onto the truck
  • New rung design allows operators to safely walk up the ramp
  • Smoothest ride of any ramp on the market

Universal Loading Ramp Range

  • Superior strength, versatility, and safety
  • The first dual purpose loading ramp available for rubber, steel tracked, and wheeled machines
  • Rungs are level with the top of the main supporting rail, minimising wear and providing greater durability

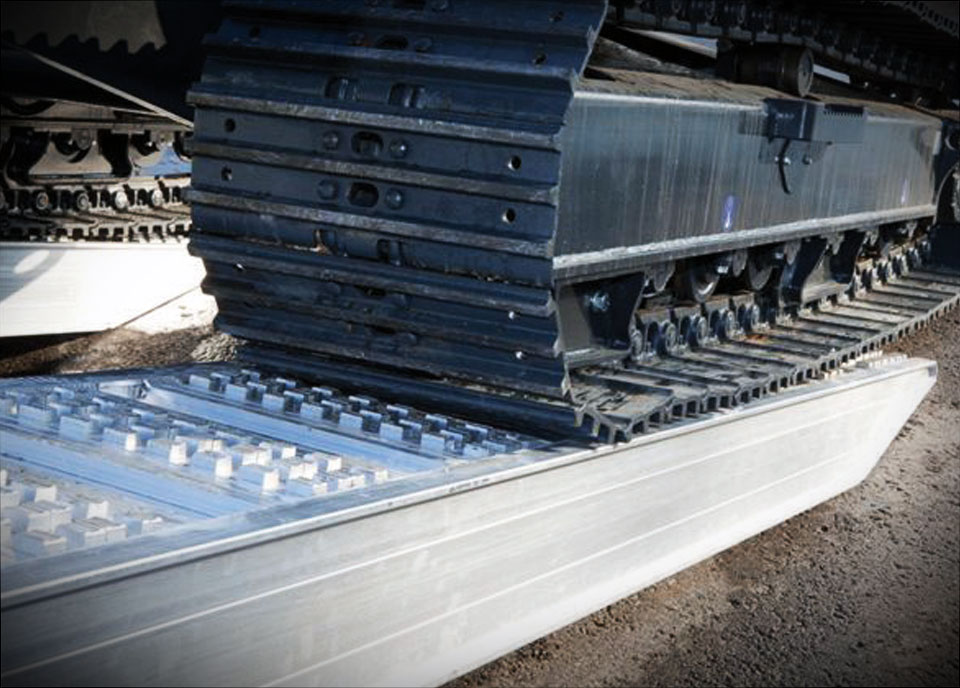

  • Patented, studded rungs are machined from a solid, not hollow extrusion, minimising slip or loss of grip during the loading/unloading activity

Ezi-Loada Ramp Specifications

Description product code Beam Width (Int) Width (Ext) Weight
Standard LR152530 64 mm 255 mm 300 mm 14 kg
Standard LR233030 100 mm 300 mm 360 mm 23 Kg
Standard LR303030 115 mm 300 mm 360 mm 26 Kg
Standard LR303535 120 mm 350 mm 410 mm 36 kg
Standard LR353535 125 mm 350 mm 410 mm 37 Kg
Standard LR403545 140 mm 450 mm 510 mm 46 Kg
Standard LR473545 155 mm 450 mm 510 mm 46 Kg
Standard LR473550 155 mm 500 mm 560 mm 51 Kg
Standard LR593545 150 mm 450 mm 510 mm 53 Kg
Universal LRU593550 150 mm 500 mm 560 mm 60 Kg
Universal LRU663550 170 mm 500 mm 560 mm 61 Kg
Universal LRU823550 180 mm 500 mm 560 mm 77 Kg

Choosing Your Ramps

Ramp Capacity By Machine Wheelbase Length

Standard Range Capacity @ wheelbase Length
LR152530 1.5 tonne @ 1 m 2500 mm
LR233030 2.2 tonne @ 1 m 3000 mm
LR303030 3.7 tonne @ 1.5 m 3000 mm
LR303535 3.4 tonne @ 1.5 m 3500 mm
LR353535 4.0 tonne @ 1.5 m 3500 mm
LR403545 4.0 tonne @ 1.5 m 3500 mm
LR473545 4.7 tonne @ 1.5 m 3500 mm
LR473550 4.7 tonne @ 1.5 m 3500 mm
LR593545 6.2 tonne @ 2.0 m 3500 mm
Universal Range Capacity @ wheelbase Length
LRU593550 6.2 tonne @ 2.0 m 3500 mm
LRU663550 7.0 tonne @ 2.0 m 3500 mm
LRU823550 9.0 tonne @ 2.0 m 3500 mm
