Pallet Fork Multifit - Digga Australia
specs see gallery play video

Pallet forks for skid steer loaders with multifit frame

Innovative pallet forks for skid steer loaders designed with operator safety in mind. A non-multifit frame design is also available, as well as pallet forks for tractors, and mini pallet forks for mini machines.

Tyne bar locking system

Easy width adjustment with lockable tyne positions (Patent Pending)

Floating tyne design

Allows the tynes to swing freely from a single lockable point ensuring load and operator safety. Available in 1500kg and 1800kg lifting capacities. Tynes load rating tested to ISO 2330 Standards.

Heavy duty frame

Heavy duty, quality Australian made frame with added stability for easy connection to your machine.

Foldable safety guard

Safety guard folds down for compact storage when pallet fork is not in use.

Machine entry step

Entry step can be mounted on either side of the pallet fork frame for easy machine access.

Slim design packaging

Designed for easy handling, shipping and storage. Assembly is simple and quick. Click here to watch the pallet fork assembly videos.

Pallet forks innovative by design

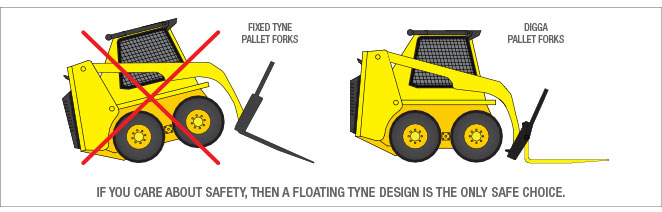

A floating tyne design offers unparalleled safety for skid steer loaders. Unlike forklifts, skid steers are able to crowd their pickup past horizontal allowing the machine to be placed in an unsafe position, which could cause it to tip over. Digga’s pallet fork design allows the tynes to swing freely from a single lockable point ensuring load and operator safety. Furthermore the design prevents the machine’s weight to be placed on the tynes which could cause them to break.

Digga's floating tyne pallet fork design.

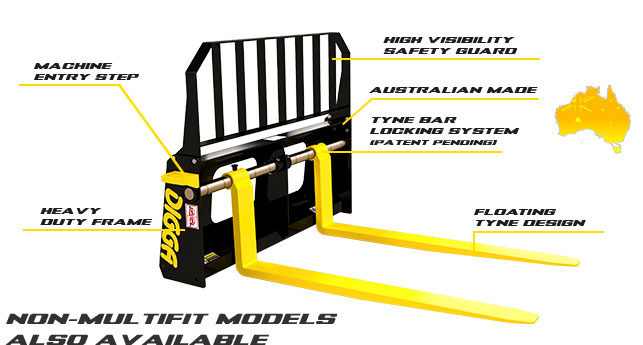

Features and benefits

  • Security guard folds down for compact storage
  • Heavy duty, quality Australian made frame with added stability
  • Load rating tested to ISO 2330 Standard
  • Machine Entry Step can be mounted on either side
  • Easy width adjustment with lockable tyne positions
  • 1500kg and 1800kg load ratings available
  • Slim design packaging for easy handling, shipping and storage
Specification 1500kg 1800kg
Length 1314 mm 1464 mm
Height 964 mm 964 mm
Width 1170 mm 1170 mm
Weight 138 kg 157 kg
