Rock Buckets for Skid Steers Loaders & Tractors

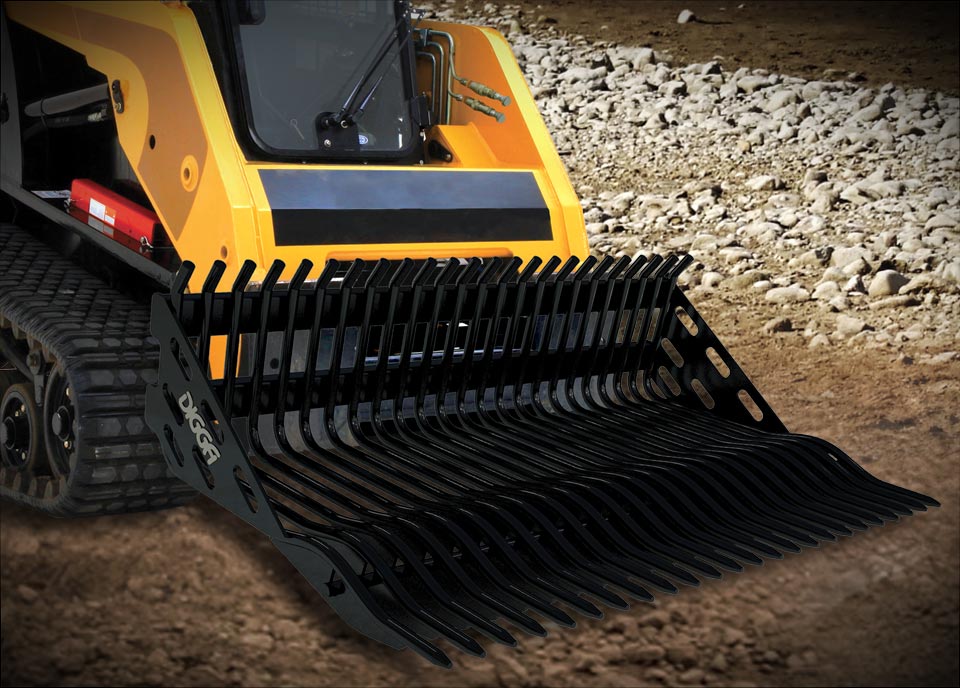

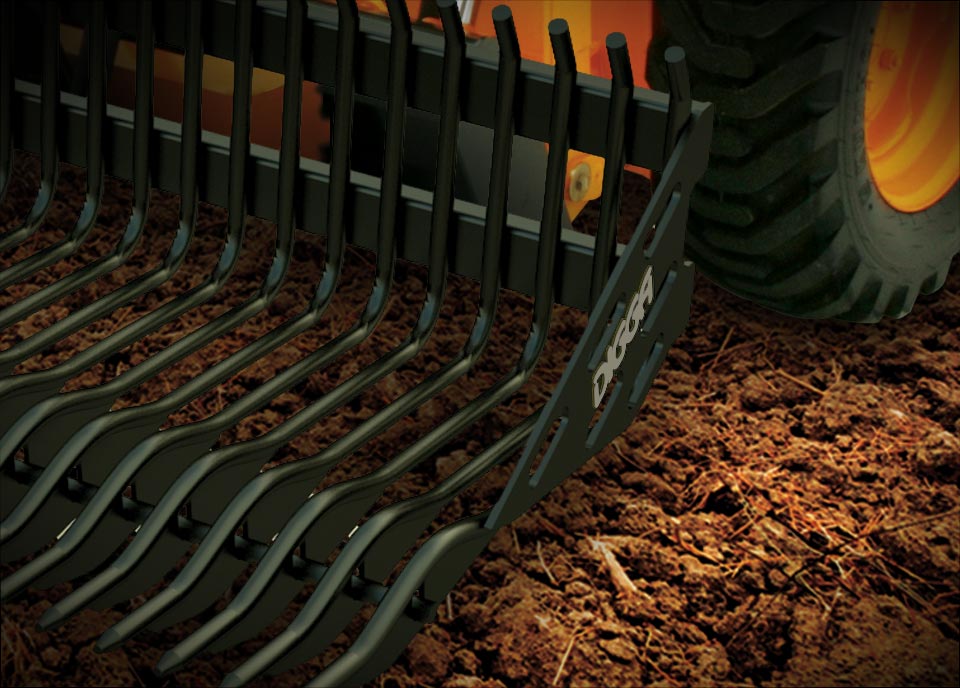

The Digga Rock Bucket is used for fast clean-ups, sifting out debris & rocks, and gathering material away from buildings and obstructions. Rock buckets can also be used in waste processing applications.

Operators now wishing to minimise waste on site will find that with the use of this type of bucket, material can be sifted and sorted to clean out unwanted material and leave good soil or material behind.

Rock Bucket Features & Benefits

Sizes range from 1740mm (68") through to 2222mm (87")
Manufactured from Solid 28mm 1045 grade steel round bar
52mm (2") tyne spacing

Video
Photos
Flyer

Jump to Rock Bucket With Grapple

Rock Bucket Specifications

Specification	1740mm	1900mm	2060mm	2222mm
Weight (with multifit frame)	299 kg	324 kg	348 kg	372 kg
Length	1079 mm	1079 mm	1079 mm	1079 mm
Width (Overall)	1740 mm	1900 mm	2060 mm	2222 mm
Height	537 mm	537 mm	537 mm	537 mm
Tyne Spacing	52 mm	52 mm	52 mm	52 mm
Number of Tynes	22	24	26	28

Rock Bucket Grapple

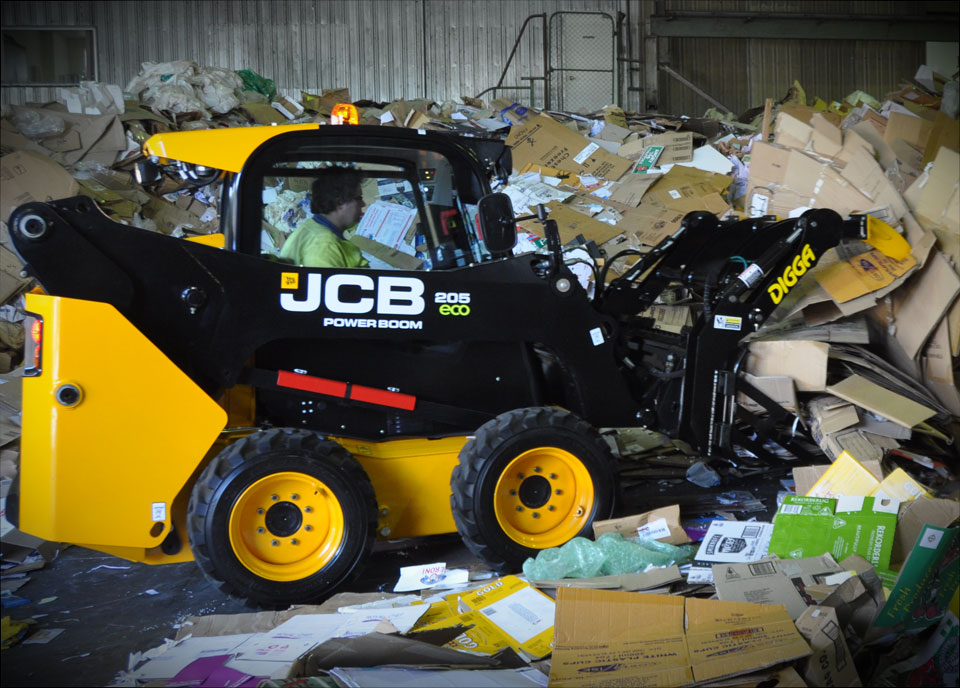

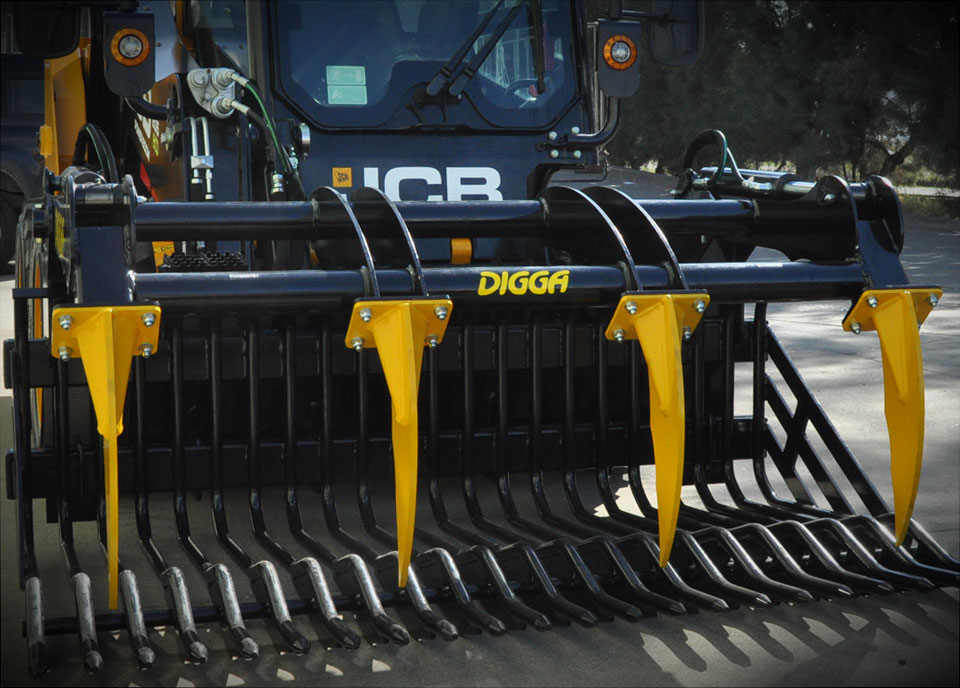

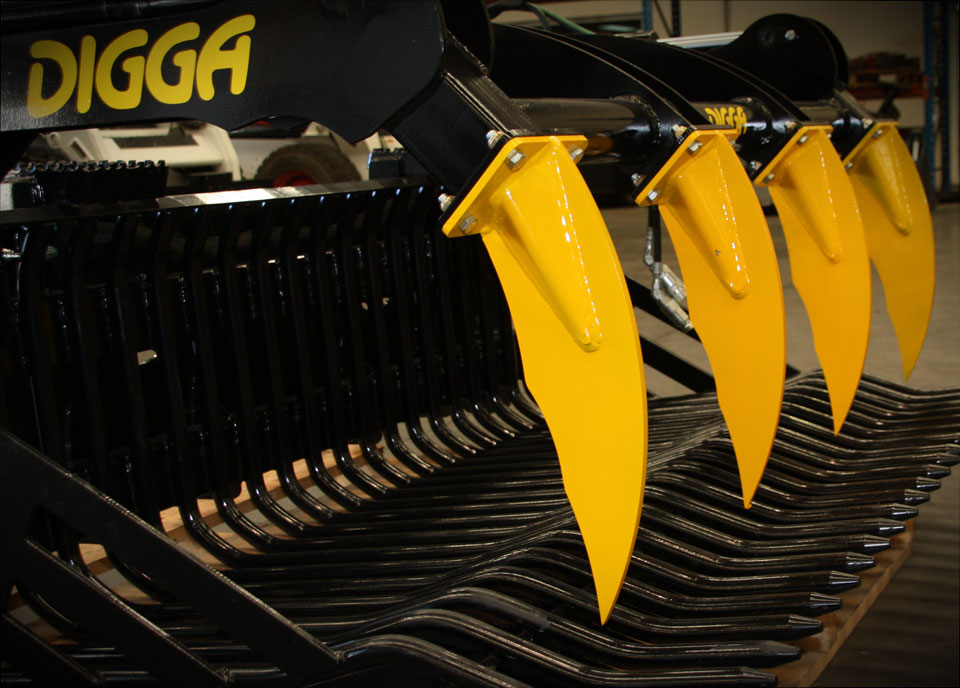

The rock bucket grapple is used to secure loads in the bucket. Hydraulically operated, the grapple is fitted to a rock bucket to provide a grabbing arm to trap and contain debris such as rocks, branches and shrubbery. Our rock buckets and grapples are also used for waste management.

Easy to assemble with replaceable Grapple teeth
Wide opening grapple with aggressive rake-back tyne design
Fits rock buckets from 1740mm (68") to 2222mm (87")
- Not suitable for Kubota SSV models
Teeth interlock with bucket tynes
Australian Made Quality
Reinforced crossbar reduing bending and flexing
Spherical bearings, threaded cylinder glands and secluded grease nipples for added durability

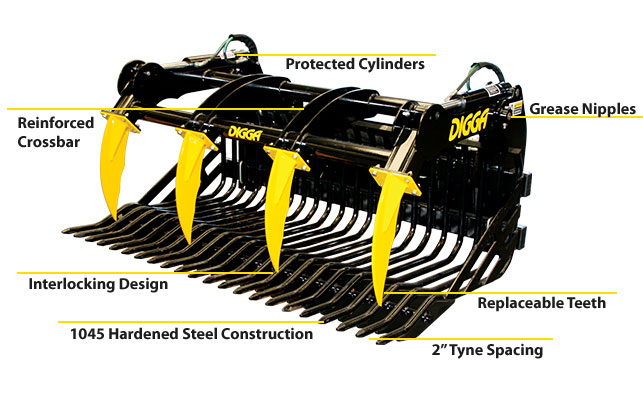

Rock Bucket & Grapple Features & Benefits

The Digga Rock Bucket & Grapple is ideal for clearing construction sites, sifting debris and much more. Suits skid steer loaders and tractors. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.
